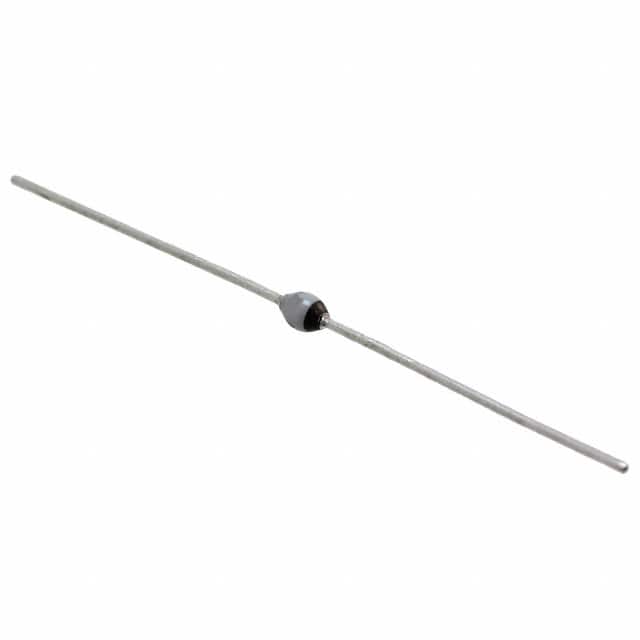

VISHAY BY448TAP 标准功率二极管, 单, 1.5 kV, 2 A, 1.6 V, 20 µs, 30 A
The is a standard avalanche Sinterglass Diode with plated axial leads. It can be mounted to any position and colour band denotes cathode end. It is suitable for use in high voltage rectification and efficiency diode in horizontal deflection circuits.
欧时:
### 标准恢复整流器,2A 至 10A采用工业标准封装类型的多用途、高效标准恢复功率二极管。### 二极管和整流器,Vishay Semiconductor
得捷:
DIODE AVALANCHE 1.5KV 2A SOD57
艾睿:
Diode Switching 1.5KV 2A 2-Pin SOD-57 Ammo
安富利:
Diode Switching 1.5KV 2A 2-Pin SOD-57 Ammo
TME:
Diode: rectifying; 1500V; 2A; 20us; Package: Ammo Pack; SOD57
负载电流 2 A
正向电压 1.6V @3A
反向恢复时间 20 µs
正向电流 2 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.6 V
正向电流Max 2 A
工作温度Max 140 ℃
工作温度Min -55 ℃
工作结温 140℃ Max
安装方式 Through Hole
引脚数 2
封装 SOD-57
长度 4.2 mm
宽度 3.6 mm
高度 3.6 mm
封装 SOD-57
工作温度 -55℃ ~ 140℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, Aerospace, Defence, Military
RoHS标准 RoHS Compliant
含铅标准 无铅
军工级 Yes
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BY448TAP Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BY448-TR 威世 | 类似代替 | BY448TAP和BY448-TR的区别 |
