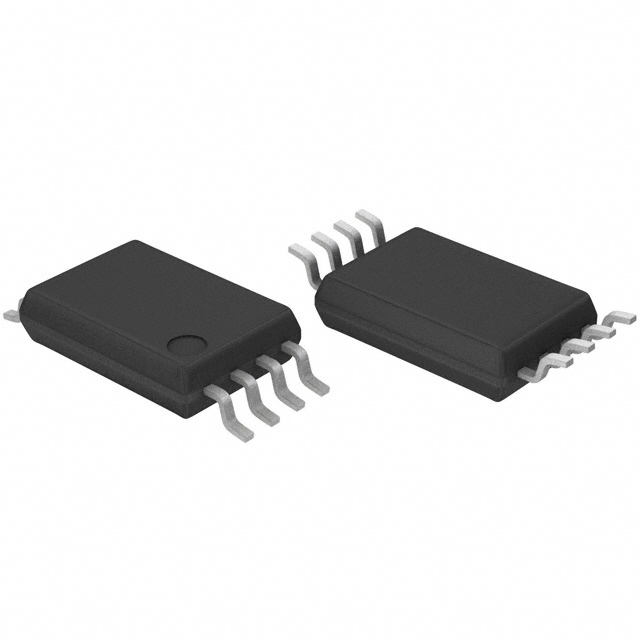

BA2904FV-E2

接地检测运算放大器 Ground Sense Operational Amplifiers

●Description

General-purpose BA10358/BA10324A family and high-reliability BA2904S/BA2904/BA2902S/BA2902 family and automotive BA2904HFVM-C integrate two or four independent Op-Amps andphase compensation capacitors on a single chip andhave some features of high-gain, low power consumption,and operating voltage range of 3[V] to 32[V] single powersupply .  BA3404 family is realized high speed operation andreduce the crossover distortions that compare with BA10358/ BA2904 family.

●Characteristics

 1  Operable with a single power supply

 2  Wide operating supply voltage

+3.0[V]～+32.0[V]single supply BA10358/BA10324A/BA2904S/BA2904/BA2902S/BA2902 family,BA2904HFVM-C

+4.0[V]～+36.0[V]single supply BA3404 family

 3  Standard Op-Amp Pin-assignments

 4  Input and output are operable GND sense

 5  Internal phase compensation type

 6  Low supply current

 7  High open loop voltage gain

 8  Internal ESD protection

  Human body modelHBM ±5000[V]Typ. BA2904S/BA2904/BA2902S/BA2902/BA3404 family,BA2904HFVM-C

9 Gold PAD BA2904S/BA2904/BA2902S/BA2902/BA3404 family,BA2904HFVM-C

 10  Wide temperature range

-40[℃]～+125[℃] BA2904/BA2902 family,BA2904HFVM-C

-40[℃]～+105[℃] BA2904S/BA2902S family

-40[℃]～+85[℃] BA10358/BA10324/BA3404 family
