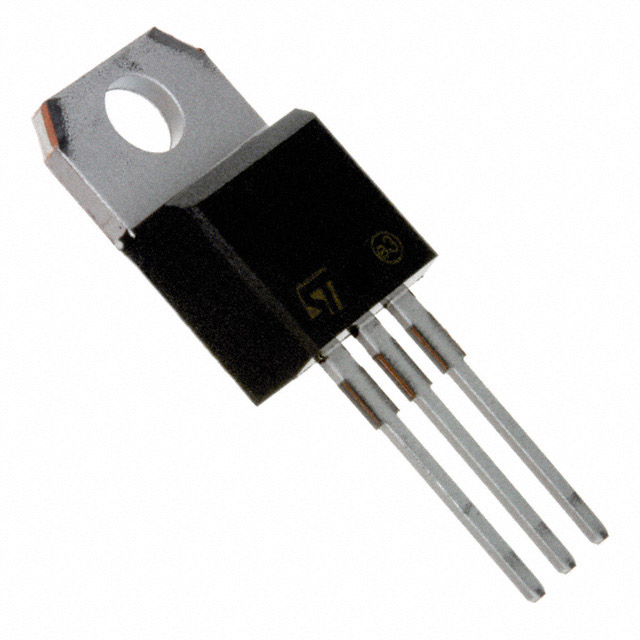

STMICROELECTRONICS BDX54B 单晶体管 双极, 达林顿, PNP, 80 V, 60 W, 8 A, 750 hFE
Description
The devices are manufactured in planar base island technology with monolithic Darlington configuration.
Features
■ Good hFE linearity
■ High fT frequency

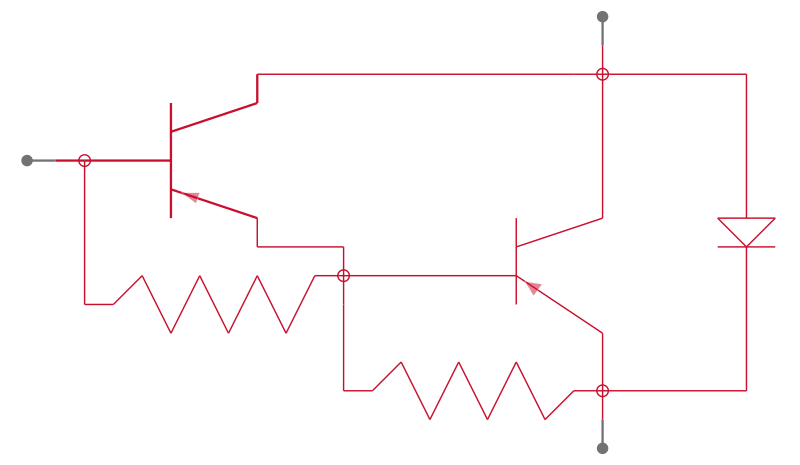

■ Monolithic Darlington configuration with integrated antiparallel collector-emitter diode
Application
■ Audio amplifiers
■ Linear and switching industrial equipment
得捷:
TRANS PNP DARL 80V 8A TO220
贸泽:
Darlington Transistors PNP Power Darlington
e络盟:
STMICROELECTRONICS BDX54B 单晶体管 双极, 达林顿, PNP, 80 V, 60 W, 8 A, 750 hFE
艾睿:
Higher current yields within your circuit is what you will get with STMicroelectronics&s; PNP BDX54B Darlington transistor. This product&s;s maximum continuous DC collector current is 8 A, while its minimum DC current gain is 750@3A@3 V. It has a maximum collector emitter saturation voltage of 2@12mA@3A V. This Darlington transistor array&s;s maximum emitter base voltage is 5 V, while its maximum base emitter saturation voltage is 2.5@12mA@3A V. Its maximum power dissipation is 60000 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a maximum collector emitter voltage of 80 V and a maximum emitter base voltage of 5 V. This Darlington transistor array has an operating temperature range of -65 °C to 150 °C.
富昌:
BDX53/4 系列 80 V 8 A 通孔 NPN功率达林顿晶体管-TO-221
Chip1Stop:
Trans Darlington PNP 80V 8A 3-Pin3+Tab TO-220 Tube
Verical:
Trans Darlington PNP 80V 8A 60000mW 3-Pin3+Tab TO-220AB Tube
Win Source:
TRANS PNP DARL 80V 8A TO-220
额定电压DC -80.0 V
额定电流 -8.00 A
针脚数 3
极性 PNP
耗散功率 60 W
击穿电压集电极-发射极 80 V
最小电流放大倍数hFE 750 @3A, 3V
额定功率Max 60 W
直流电流增益hFE 750
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 60000 mW

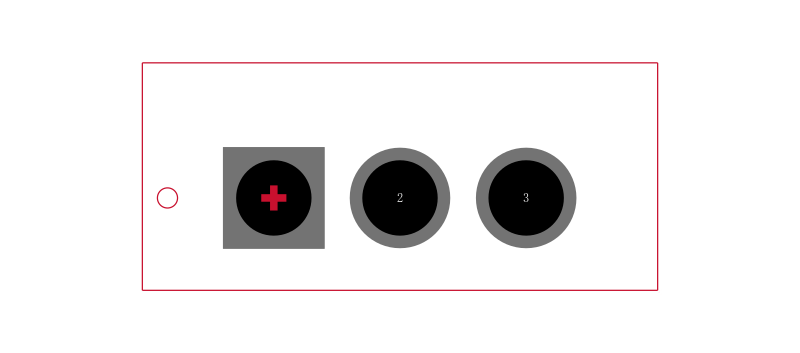

安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.4 mm
宽度 4.6 mm
高度 9.15 mm
封装 TO-220-3
工作温度 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
