STMICROELECTRONICS BTB12-600CRG 三端双向可控硅, 600 V, 25 mA, 1 W, 1.5 V, 120 A
The is a 3-pin Standard Non-insulated TRIAC for general purpose AC switching and can be used as ON/OFF function. The BTA series TRIAC provides voltage insulated tab by using an internal ceramic pad.
额定电压DC 600 V
额定电流 12 A
保持电流 25 mA
保持电流Max 25 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole

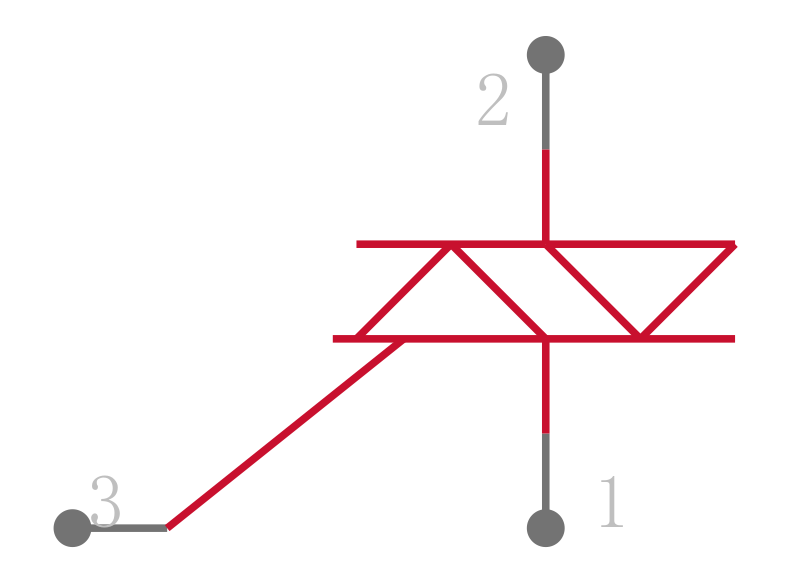

引脚数 3

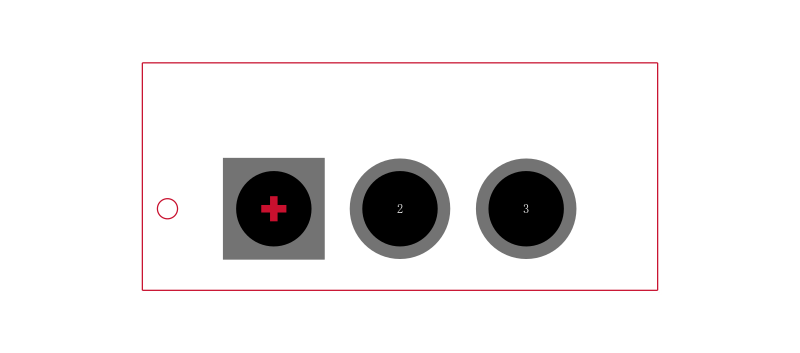

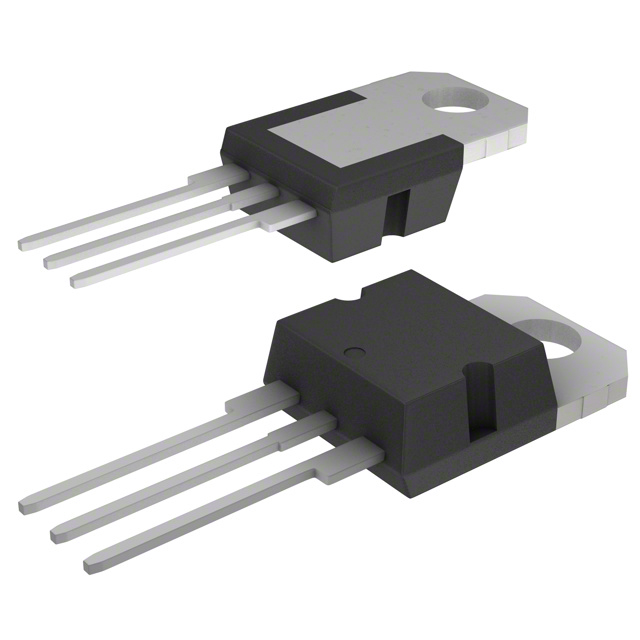

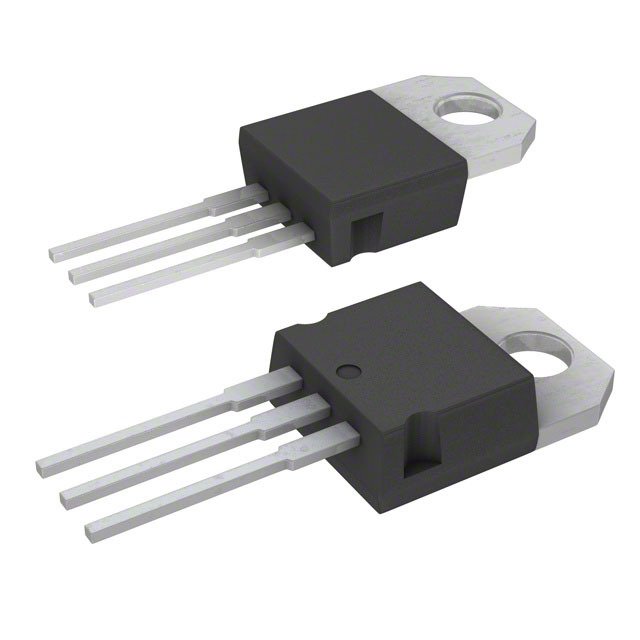

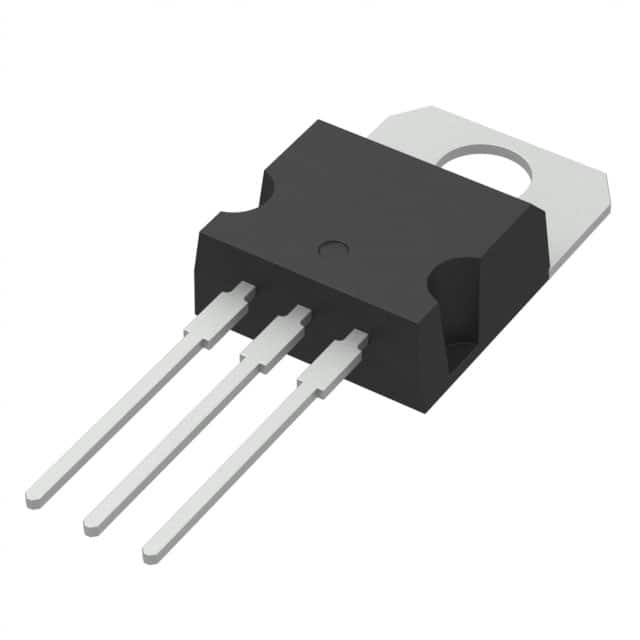

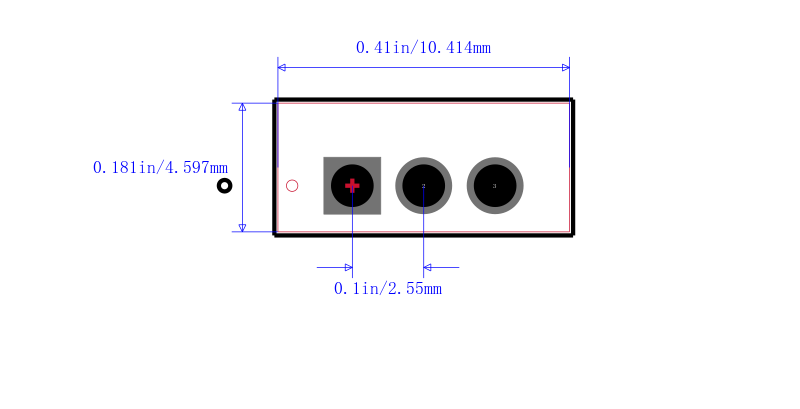

封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
制造应用 Lighting, 照明, 工业, Industrial, 电机驱动与控制, Motor Drive & Control, Industrial, Lighting, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BTB12-600CRG ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
BTA10-600BRG 意法半导体 | 类似代替 | BTB12-600CRG和BTA10-600BRG的区别 |
BTA10-600CRG 意法半导体 | 类似代替 | BTB12-600CRG和BTA10-600CRG的区别 |
BTB08-600BRG 意法半导体 | 类似代替 | BTB12-600CRG和BTB08-600BRG的区别 |
