B32922C3473M000

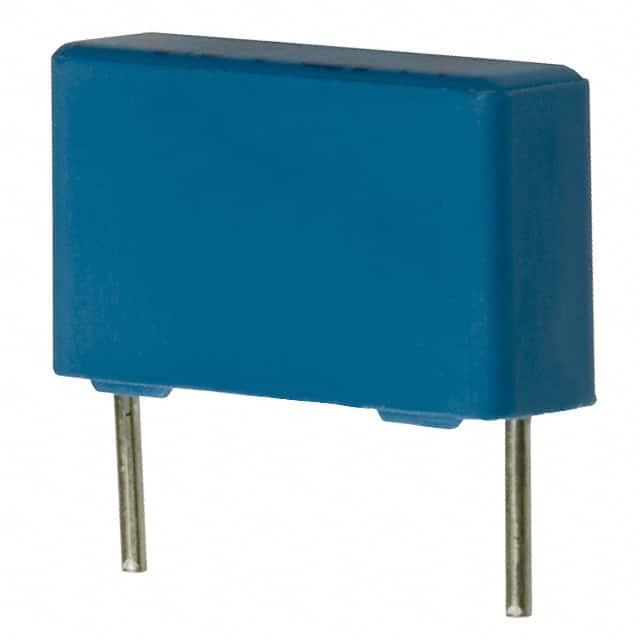

EPCOS  B32922C3473M000  膜电容, B32922C系列, 0.047 µF, ± 20%, X2, 径向引线, 110 °C

Typical applications

X2 class for interference suppression

"Across the line" applications

Climatic

Max. operating temperature: 125 °C

Climatic category IEC 60068-1: 40/105/56

Construction

Dielectric: polypropylene MKP

Plastic case UL 94 V-0

Epoxy resin sealing UL 94 V-0

Features

Very small dimensions

Self-healing properties

Terminals

Parallel wire leads, lead-free tinned

Standard lead lengths: 6 1 mm

Special lead lengths available on request

Marking

Manufacturer"s logo, lot number,

date code, rated capacitance coded,

cap. tolerance code letter,

rated AC voltage,

series number, sub-class X2,

dielectric code MKP, climatic category, passive flammability category, approvals.
