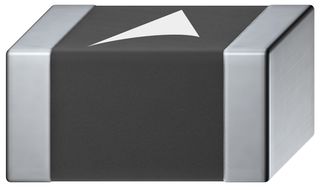

B57620C5103J62图片1

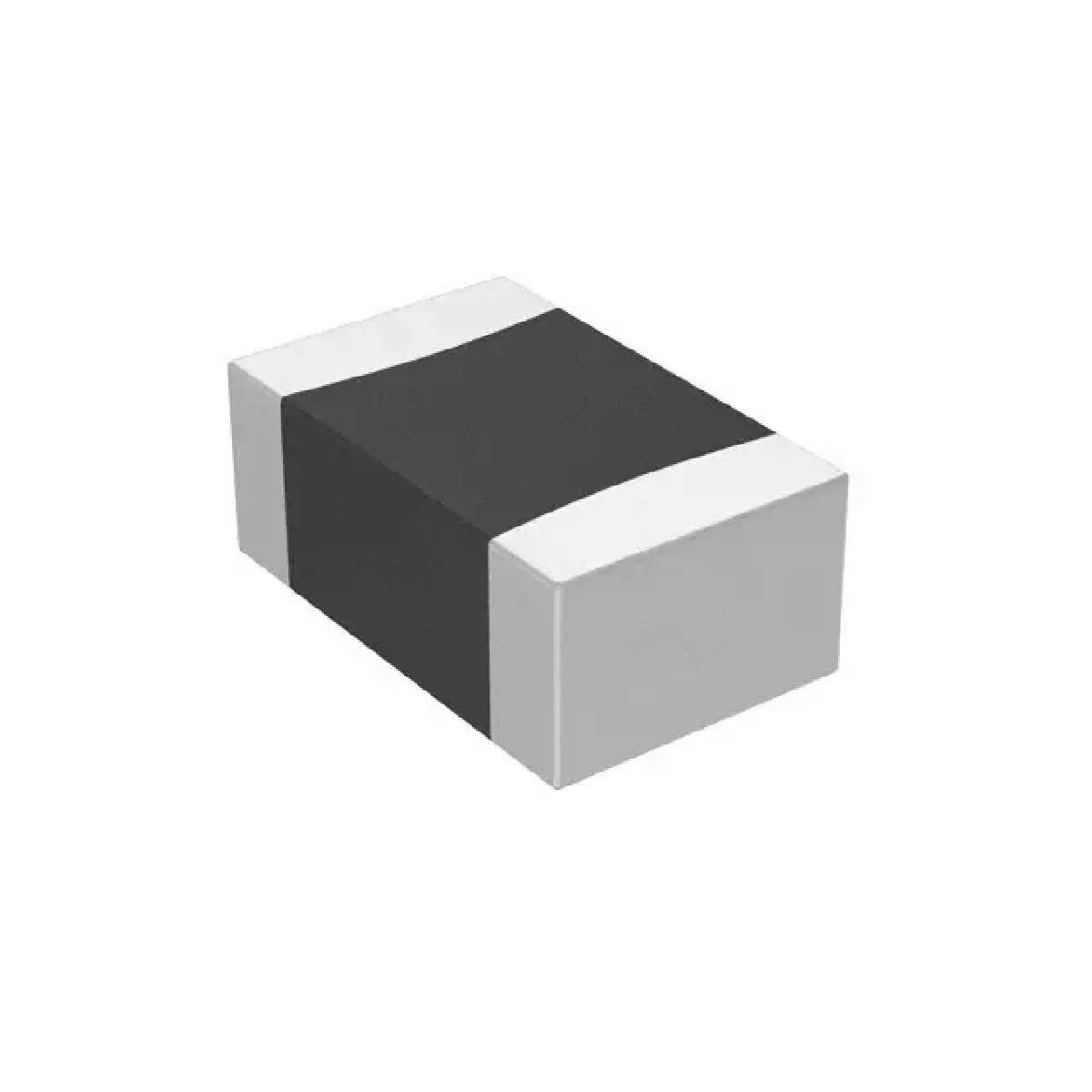

B57620C5103J62图片2
B57620C5103J62图片3
B57620C5103J62图片4
B57620C5103J62图片5
B57620C5103J62图片6
B57620C5103J62图片7
B57620C5103J62图片8
B57620C5103J62图片9
B57620C5103J62图片10
B57620C5103J62图片11
B57620C5103J62概述

EPCOS  B57620C5103J62  热敏电阻, NTC, 10KΩ, 5%, 0805

The is a 2-pin 0805 2012 SMD NTC Thermistor with nickel barrier termination. This standard B57620C5 series thermistor features multilayer SMD NTC with inner electrodes. The nickel barrier layer of the silver/nickel/tin termination prevents leaching of the silver base metallization layer. This allows great flexibility in the selection of soldering parameters. The tin prevents the nickel layer from oxidizing and thus ensures better wetting by the solder. The nickel barrier termination is suitable for all commonly-used soldering methods. Soldering can use resin-type flux or non-activated flux. The soldering due to insufficient preheating may cause ceramic cracks. Suitable for temperature measurement and compensation.

.
Excellent long-term aging stability in high temperature environment
.
210mW Maximum power

Do not store SMDs where they are exposed to heat or direct sunlight. Avoid contamination of thermistor surface during storage, handling and processing. Do not touch components with bare hands.

Gloves are recommended.

B57620C5103J62中文资料参数规格
技术参数

电阻 10 kΩ

阻值偏差 ±5 %

额定功率Max 210 mW

工作温度Max 125 ℃

工作温度Min -55 ℃

精度 ±3 %

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 1.3 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 125℃

其他

包装方式 Tape & Reel TR

制造应用 Test & Measurement, 测试与测量

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15
