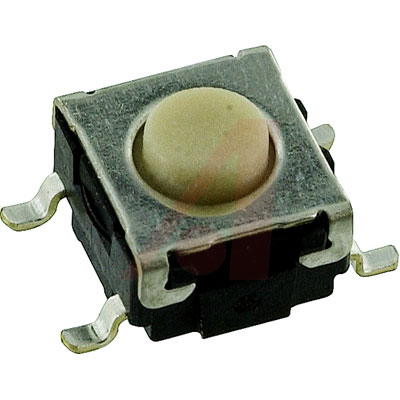

B3S-1000P

SPST N/O 触点配置密封结构 轻触反应 介电强度: >500V 交流/1 分钟 绝缘电阻: >100MΩ（250V 直流） 密封，用于在焊接之后浸洗 适合于回流焊接 回流焊接温度: 235°C，10 秒最大 ### 注请勿使用含氯的或水性溶剂进行清洁 ### 触控

表面安装轻触

所有开关均有 SPST N/O 触点配置

密封结构

轻触反应

介电强度: >500V 交流/1 分钟

绝缘电阻: >100MΩ（250V 直流）

密封，用于在焊接之后浸洗

适合于回流焊接

回流焊接温度: 235°C，10 秒最大

### 注

请勿使用含氯的或水性溶剂进行清洁

### 触控

得捷:
SWITCH TACTILE SPST-NO 0.05A 24V

立创商城:
B3S-1000P 轻触开关

欧时:
Omron 按钮式 轻触式开关 B3S-1000P, 单刀单掷 - 常开, 50 mA @ 24 V 直流 0.8mm

贸泽:
触觉开关 6X6X4.3mm 160gF T/R

艾睿:

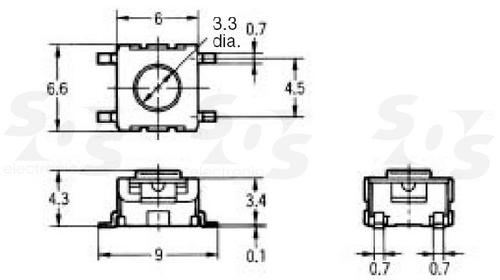

This B3S-1000P tactile switch from Omron will turn your system on and off when there is a change in pressure. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has an operating temperature range of -25 °C to 70 °C. The B3S-1000P tactile switch has a gull wing termination style. This product is 6.6 mm long, 4.3 mm tall and 9 mm deep. This ivory round button actuator is 0.8 mm long. The maximum DC voltage rating is 24 VDC.

Allied Electronics:
Switch; Tactile; 50 mA; 24 VDC; 4.3 x 9 mm; SPST-NO; Solder

富昌:
常开 单刀单掷 圆形 按钮 鸥翼型 0.05 A 24V 1.6 N 轻触开关

Chip1Stop:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 1.57N SMD Embossed Tape

TME:
Microswitch; 1-position; SPST-NO; 0.05A/24VDC; SMT; 1.57N; 6x6mm

Verical:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 1.57N SMD Embossed Tape

Newark:
# OMRON ELECTRONIC COMPONENTS  B3S-1000P  Tactile Switch, Non Illuminated, 24 V, 50 mA, 1.57 N, Solder, B3S Series

MASTER:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 1.57N SMD T/R

Electro Sonic:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 1.57N SMD T/R

Win Source:
Tactile Switch SPST-NO Top Actuated Surface Mount
