B57164K222K52

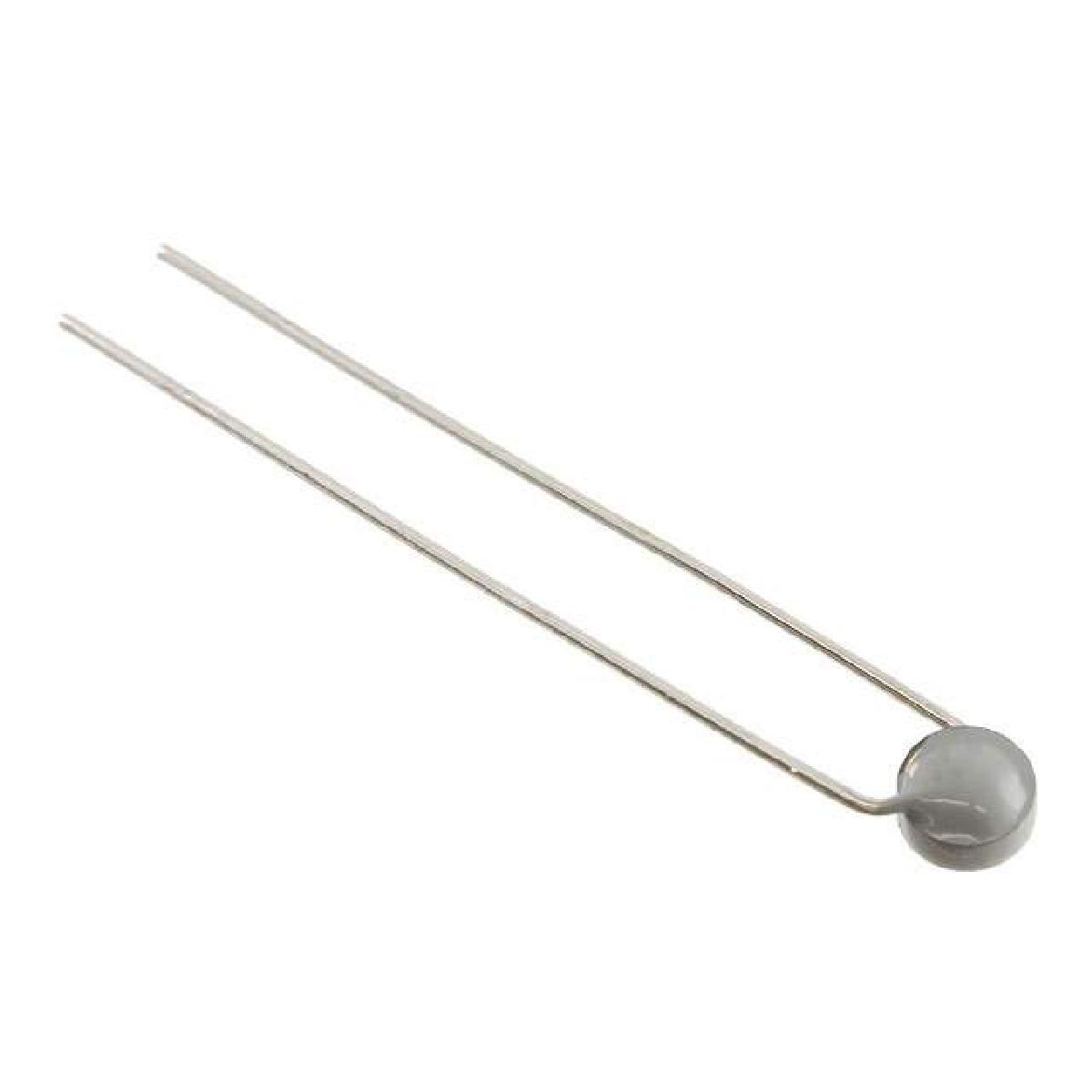

B57164K222K52图片1
B57164K222K52图片2
B57164K222K52概述

Thermistor NTC 2.2KΩ 10% 2Pin Radial 3900K >= -3.5 Cassette

A cheap and effective way to measure temperature, this thermistor from EPCOS belongs in your design. This part has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. This product is 5Max mm deep.


艾睿:
Thermistor NTC 2.2K Ohm 10% 2-Pin Radial 3900K >= -3.5 Cassette


Allied Electronics:
NTC THERMISTOR K164 /2.2 K/K52 10 %


B57164K222K52中文资料参数规格
技术参数

电阻 2.2 kΩ

阻值偏差 ±10 %

额定功率Max 450 mW

工作温度Max 125 ℃

工作温度Min -55 ℃

精度 ±3 %

封装参数

安装方式 Through Hole

封装 Disc, 5.5mm Dia x 5.0mm W

外形尺寸

脚长度 34 mm

封装 Disc, 5.5mm Dia x 5.0mm W

物理参数

工作温度 -55℃ ~ 125℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买B57164K222K52
型号: B57164K222K52
制造商: Epcos 爱普科斯
描述:Thermistor NTC 2.2KΩ 10% 2Pin Radial 3900K >= -3.5 Cassette
