BPA01B

C & K COMPONENTS  BPA01B  DIP / SIP开关, SPST, 通孔安装, 1 电路, DIP非密封, 25 VDC

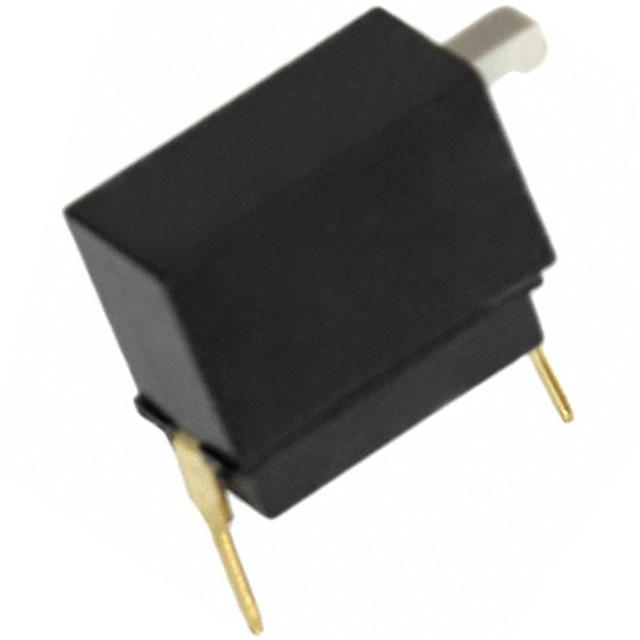

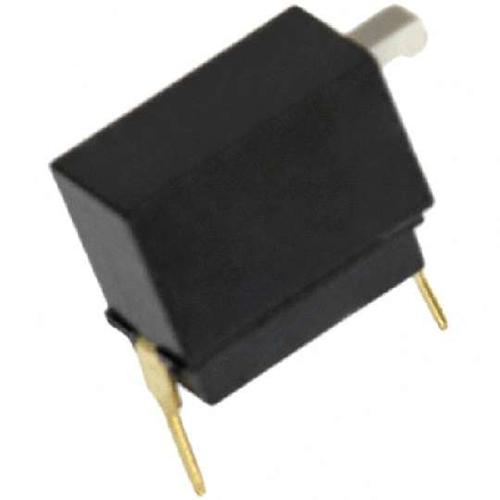

The is a 2-pole through-hole mount DIP Switch with side actuated contacts and high pressure contact system does not require tape seal for washing. Suitable for use with address switch for industrial controls, logic switching for computers and peripherals, function controlling for numerous applications.

.

10000 Cycles minimum mechanical and electrical life at 5VDC 10mA

.

50mR Initial maximum contact resistance

.

100MR Minimum insulation resistance at 100VDC

.

800 grams Maximum operating force

.

UL94V-0 Flammability rated PPS housing

.

UL94V-0 Flammability rated PPS cover

.

UL94V-0 Flammability rated PA-6T actuator

.

Beryllium copper with gold over nickel plate contacts

.

Brass, gold over nickel plate terminals

.

-20 to 85°C Operating temperature
