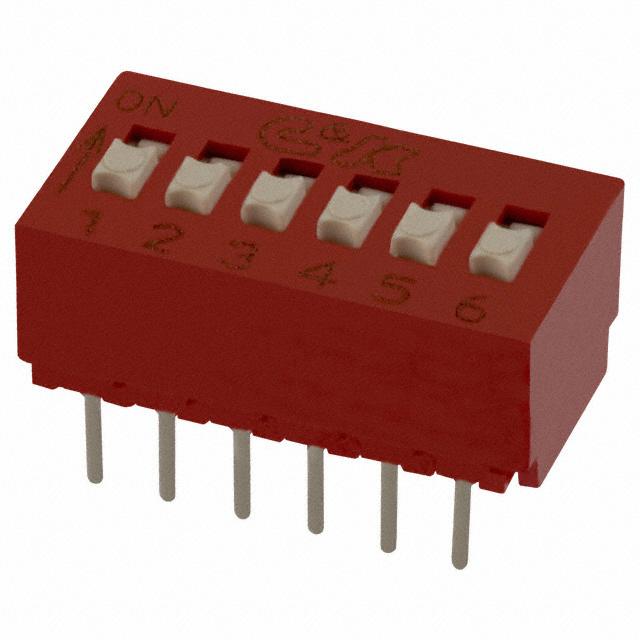

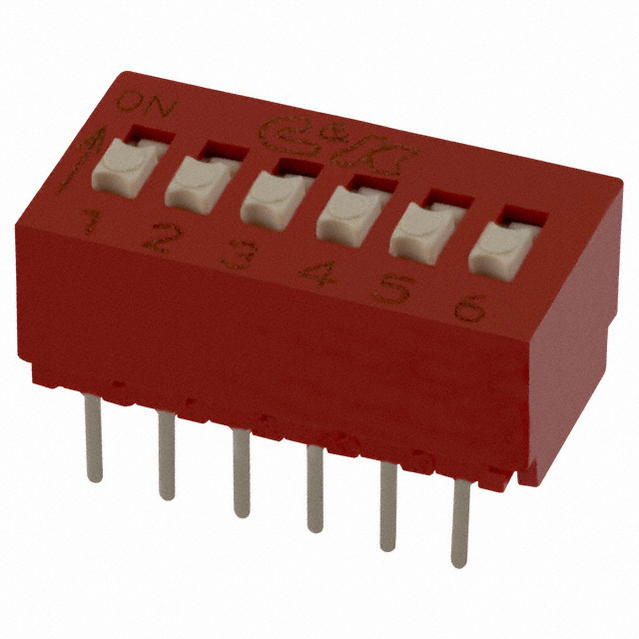

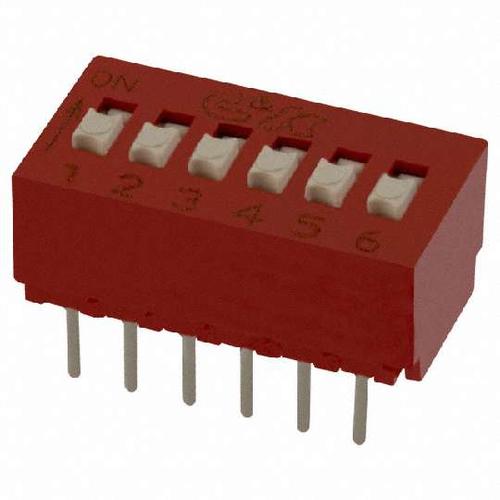

C & K COMPONENTS BD06 DIP / SIP开关, BD系列, SPST, 通孔安装, 6 电路, DIP非密封, 24 VDC
The BD series Standard Profile DIP Switch with extended actuator for easy actuation. Open bottom construction allows for solder washing without the need for tape seal. Suitable for use with address switch for industrial controls, logic switching for computers and peripherals, function controlling for numerous applications.
额定电压DC 25 V
额定电流 100 mA
电容 50 pF
触点类型 SPST
电路数 6
针脚数 6
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 5 VDC
额定电压DC Max 25 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 DIP
长度 17.27 mm
宽度 9.7 mm
高度 7.62 mm
封装 DIP
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BD06 C&K Components | 当前型号 | 当前型号 |
BD06AV C&K Components | 完全替代 | BD06和BD06AV的区别 |
BD06AV2 C&K Components | 完全替代 | BD06和BD06AV2的区别 |
76SB06ST Grayhill | 功能相似 | BD06和76SB06ST的区别 |
