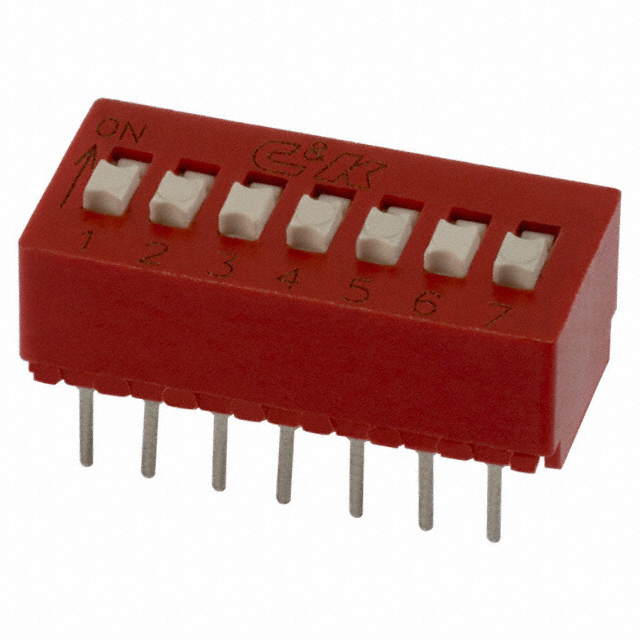

BD07图片1
BD07图片2
BD07图片3
BD07图片4
BD07图片5
BD07图片6
BD07图片7
BD07图片8
BD07图片9
BD07图片10
BD07概述

BD 系列 顶部触动 单刀单掷 7 位置 通孔 DIP 开关

DIP SPST 7 位置 通孔 滑动式(标准) 触动器 100mA 5VDC


得捷:
SWITCH SLIDE DIP SPST 100MA 5V


立创商城:
BD07


艾睿:
The BD07 dual in-line package switch, developed by C&a;K Components, can give you electronic flow control within your printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The BD07 DIP switch has a PC pin termination style. This product is 19.81 mm long, 7.62 mm tall and 9.65 mm deep. The maximum DC voltage rating is 25 VDC. This product&s;s terminal pitch is 2.54 mm.


Allied Electronics:
Switch, DIP; Slide; SPST x 7 pos; 100mA 5VDC; PCB pins; Std profile


安富利:
Switch DIP OFF ON SPST 7 Extended Slide 0.1A 25VDC PC Pins 10000Cycle/SwitchCycle 2.54mm Thru-Hole Tube


Verical:
Switch DIP OFF ON SPST 7 Extended Slide 0.1A 25VDC PC Pins 10000Cycles/SwitchCycles 2.54mm Thru-Hole Tube


Newark:
# C & K COMPONENTS  BD07  Slide Switch,STRAIGHT,SPST,ON-OFF,Number Of Positions:7,PC TAIL Terminal,PCB Hole Count:14


MASTER:
Standard Profile DIP


Electro Sonic:
Standard Profile DIP


BD07中文资料参数规格
技术参数

额定电压DC 25 V

额定电流 100 mA

绝缘电阻 1000 MΩ

电容 5 pF

触点类型 SPST

针脚数 7

接触电阻 50 mΩ

额定电流Max 0.1 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 5 VDC

额定电压DC Max 25 V

接触电阻Max <50 mΩ

封装参数

安装方式 Through Hole

封装 DIP

外形尺寸

长度 19.81 mm

宽度 9.65 mm

高度 7.62 mm

封装 DIP

物理参数

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买BD07
型号: BD07
制造商: C&K Components
描述:BD 系列 顶部触动 单刀单掷 7 位置 通孔 DIP 开关
替代型号BD07
型号/品牌 代替类型 替代型号对比

BD07

C&K Components

当前型号

当前型号

BD07AV

C&K Components

类似代替

BD07和BD07AV的区别

76SB07ST

Grayhill

功能相似

BD07和76SB07ST的区别

2-5435668-7

泰科

功能相似

BD07和2-5435668-7的区别
