TEXAS INSTRUMENTS BQ24030EVM Evaluation Module, Power Management, Battery Charger, BQ24030

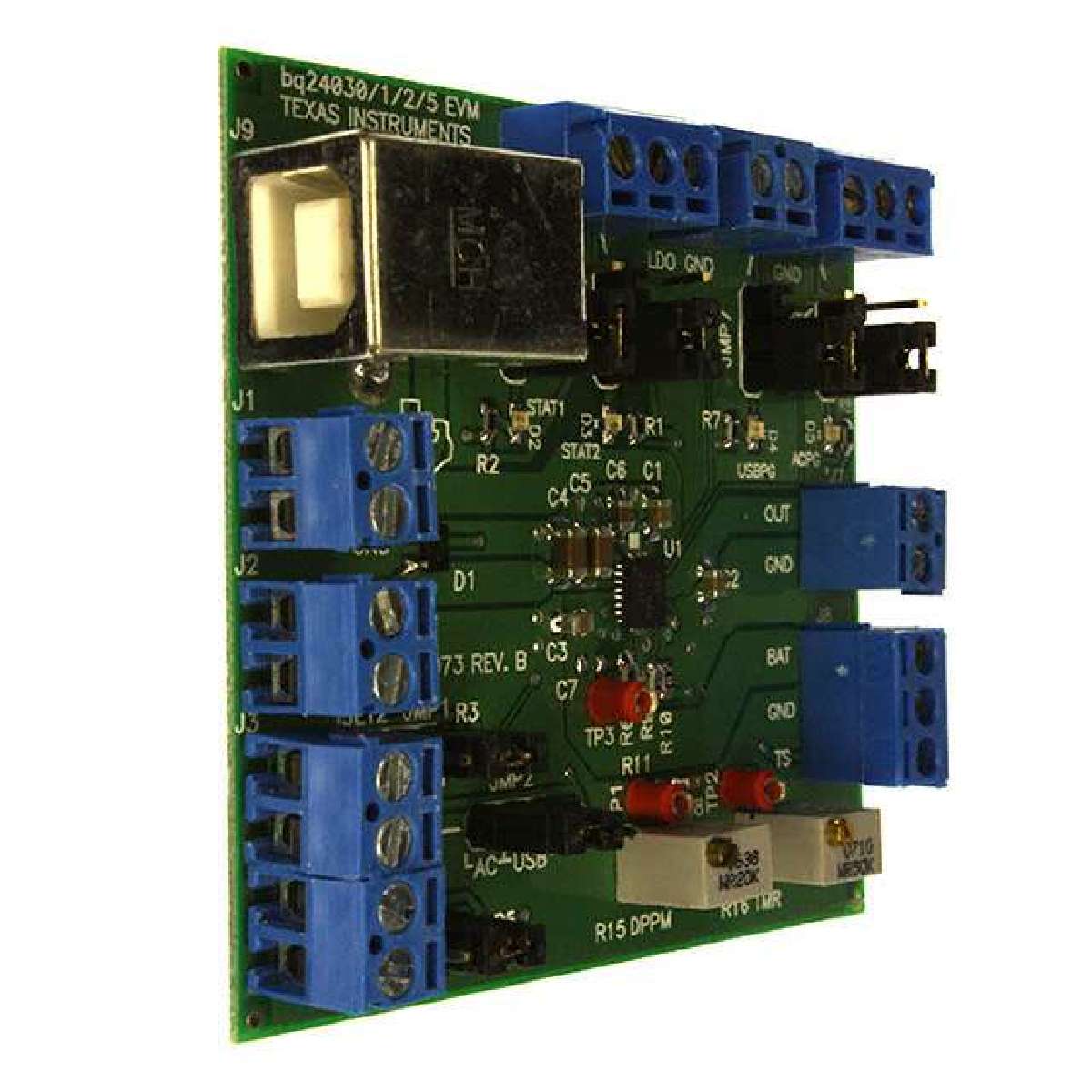

The is the evaluation module EVM for bq24030 Single Chip Charge and Dynamic Power Path Management IC. The bqNY III series of devices are highly integrated lithium ion linear chargers and system power path management devices. The bqTINY III series offer integrated USB port and DC supply AC adapter, power path management with autonomous power source selection, power FETs and current sensors, high accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. The bqTINY III series powers the system while independently charging the battery. This feature reduces the charge and discharge cycles on the battery, allows for proper charge termination and allows the system to run with an absent or defective battery pack. The bqTiny III automatically selects the USB port or the ac adapter as the power source for the system. The EVM is a complete bq24030 based circuit.
- .
- Typical input voltage: 5V
- .
- Charge current limit: 2A
- .
- Output regulation voltage: 4.2V
- .
- OUT pin for AC conditions: regulated to 6V
