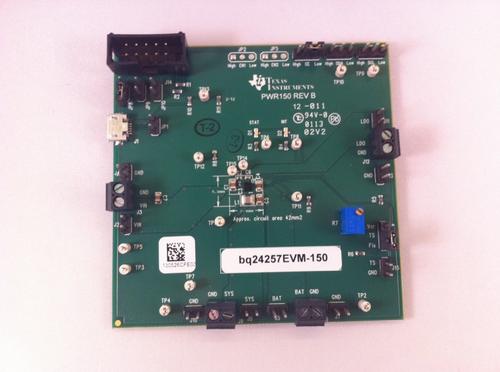

TEXAS INSTRUMENTS BQ24257EVM-150 评估模块, BQ24257EVM-150
This EVM enables test and evaluation of the Texas Instruments" bq24250/51/57 devices. The bq2425x series are highly integrated single cell Li-Ion battery chargers targeted for space-limited, portable applications with high capacity batteries. The single cell charger has a single input that operates from either a USB port or AC wall adapter for a versatile solution. BC1.2 compliant D+/D detection allows for recognition of CDP, DCP, SDP, and non-standard USB adapters. The use of an accessory dead battery provision DBP pin allows for the system to sync a dead battery state in order to enable/disable the BC1.2 detection in the case of an external USB-PHI. The user"s guide includes EVM specifications, the schematic diagram, bill of materials, and board layout.
