TEXAS INSTRUMENTS BQ24024DRCR 芯片, 锂电池充电控制器, 10-SON
DESCRIPON
The bqTINY-II series are highly-integrated, flexible Li-Ion linear charge and system power management devices for space-limited charger applications. In a single monolithic device, the bqTINY-II offers integrated USB-port and ac-adapter supply management with autonomous power-source selection, power-FET and current-sensor interfaces, high-accuracy current and voltage regulation, charge status, and charge termination.
FEATURES
• Small 3 mm x 3 mm MLP Package
• Charges and powers Systems from Either AC Adapter or USB With Autonomous power-Source Selection
• Integrated USB Control With Selectable 100 mA and 500 mA Charge Rates
• Ideal for Low-Dropout Charger Designs for Single-Cell Li-Ion or Li-pol Packs in Space Limited portable applications
• Integrated power FET and Current Sensor for Up to 1-A Charge applications From AC Adapter
• Precharge Conditioning With Safety Timer
• power Good AC Adapter Present Status Output
• Optional Battery Temperature Monitoring Before and During Charge
• Automatic Sleep Mode for Low-power Consumption
APPLICATIONS
• PDAs, MP3 Players
• Digital Cameras
• Internet appliances
• Smartphones
电源电压DC 6.50V max
输入电压DC 6.50 V
输出电压 4.2 V
输出电流 1 A
针脚数 10
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5 V
电源电压Max 6.5 V
电源电压Min 4.35 V
输入电压 6.5 V
安装方式 Surface Mount
引脚数 10

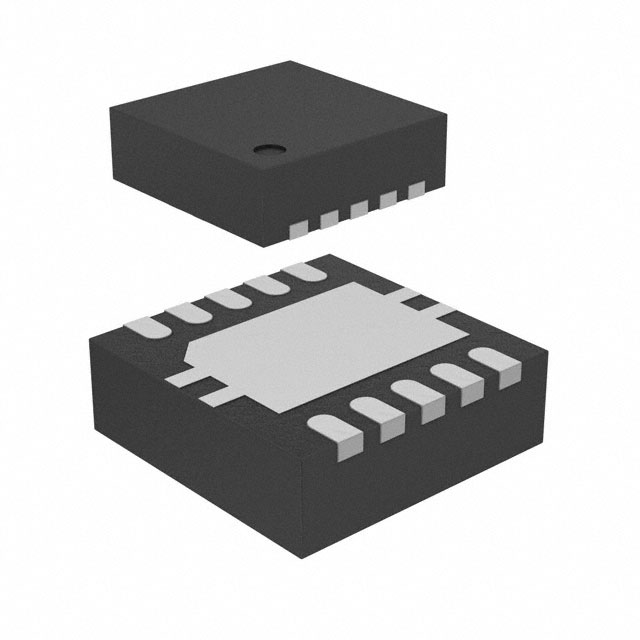

封装 VSON-10

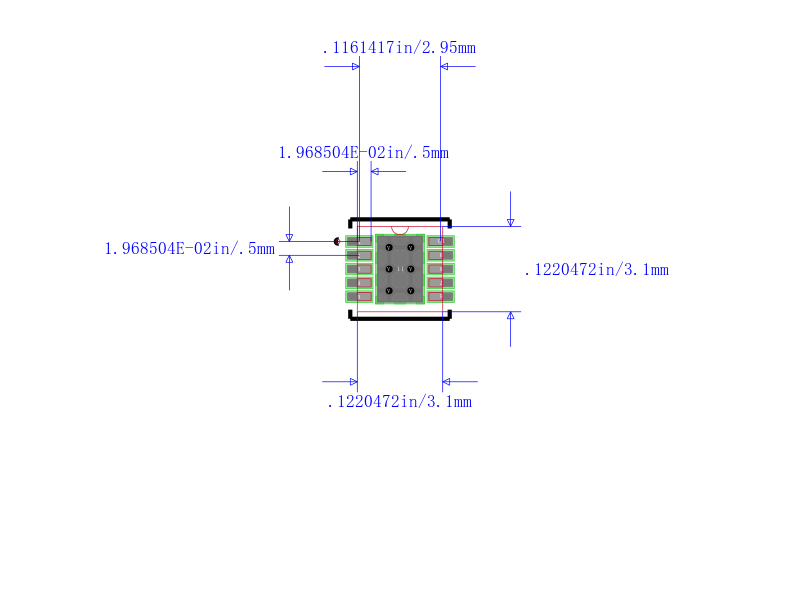

长度 3 mm
宽度 3 mm
高度 0.9 mm
封装 VSON-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ24024DRCR TI 德州仪器 | 当前型号 | 当前型号 |
BQ24024DRCRG4 德州仪器 | 完全替代 | BQ24024DRCR和BQ24024DRCRG4的区别 |
