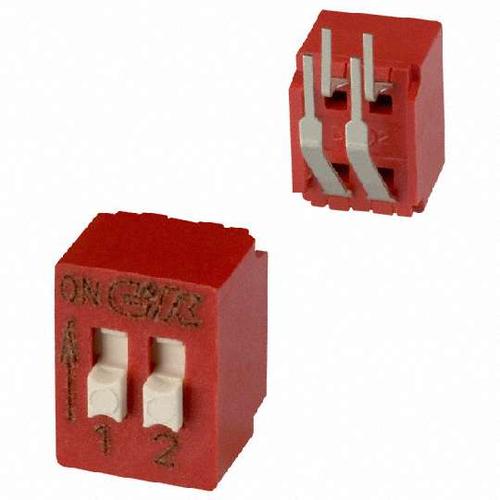

BD02AV

C & K COMPONENTS  BD02AV  DIP / SIP开关, BD系列, SPST, 通孔安装, 2 电路, DIP非密封, 24 VDC

The BD series Standard Profile DIP Switch with extended actuator for easy actuation. Open bottom construction allows for solder washing without the need for tape seal. Suitable for use with address switch for industrial controls, logic switching for computers and peripherals, function controlling for numerous applications.

.

10000 Make-and-break cycles mechanical and electrical life at full load each circuit

.

Below 50mR Typical initial contact resistance at 2 to 4VDC 100mA

.

10⁹R Minimum insulation resistance

.

500VRMS Minimum dielectric strength at sea level between adjacent terminals

.

5pF Maximum capacitance between adjacent terminals

.

Glass filled polyester PBT, flame retardant UL94V-0 case and cover

.

Glass filled nylon 6/6, flame retardant, heat stabilized UL94V-0 actuator

.

Gold over nickel over phosphor bronze contacts

.

Matte-tin over nickel over phosphor bronze terminals

.

-40 to 85°C Operating temperature
