B57861S103J40

B57861S103J40图片1
B57861S103J40图片2
B57861S103J40图片3
B57861S103J40图片4
B57861S103J40图片5
B57861S103J40图片6
B57861S103J40概述

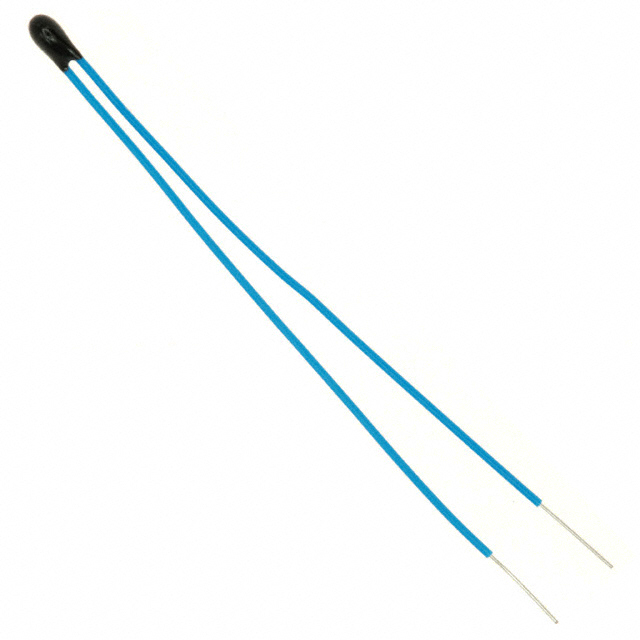

Thermistor NTC 10KΩ 5% 2Pin Wire 3988K >= -3.5 Bulk

Simple to implement like a resistor this thermistor developed by EPCOS will measure temperature. It has 2 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 6.5Max mm tall with a diameter of 2.41Max mm.


艾睿:
Thermistor NTC 10K Ohm 5% 2-Pin Wire 3988K >= -3.5 Bulk


Allied Electronics:
NTC THERMISTOR S 861/10 K/J 40 5 %


B57861S103J40中文资料参数规格
技术参数

电阻 10 kΩ

阻值偏差 ±5 %

额定功率Max 60 mW

精度 ±1 %

封装参数

封装 Bead

外形尺寸

长度 6.5 mm

高度 6.5 mm

脚长度 6 mm

封装 Bead

物理参数

工作温度 -55℃ ~ 155℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买B57861S103J40
型号: B57861S103J40
制造商: Epcos 爱普科斯
描述:Thermistor NTC 10KΩ 5% 2Pin Wire 3988K >= -3.5 Bulk
