5位 脚距2.54mm

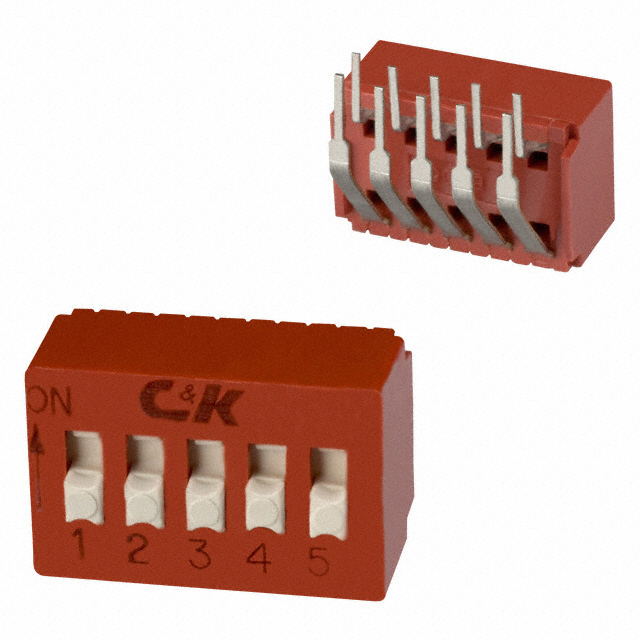

This dual in-line package switch from C&K Components can be easily customized and designed to be used on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has an operating temperature range of -40 °C to 85 °C. The BD05AV DIP switch has a PC pin termination style. The maximum DC voltage rating is 25 VDC. This product"s terminal pitch is 2.54 mm. This product is 14.73 mm long, 9.65 mm tall and 11.69 mm deep.
额定电压DC 25 V
触点类型 SPST
针脚数 5
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 5 VDC
额定电压DC Max 25 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 DIP
引脚间距 1.27 mm
长度 14.73 mm
高度 9.65 mm
封装 DIP
引脚间距 1.27 mm
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BD05AV C&K Components | 当前型号 | 当前型号 |
BD05 C&K Components | 完全替代 | BD05AV和BD05的区别 |
BD05AV2 C&K Components | 类似代替 | BD05AV和BD05AV2的区别 |
