BAV170

NXP Semiconductors### 特点支持自定义高密度电路设计 提供低泄漏和高电压类型 高切换速度 低电容 ### 二极管和整流器，NXP SemiconductorsNXP 以不同封装和配置提供广泛的开关二极管。

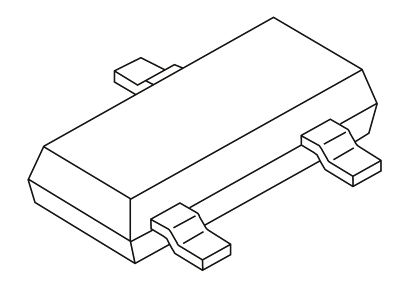

The is an epitaxial medium-speed switching double Diode in a small SOT23 surface-mounted device SMD plastic package. The diodes are in common cathode configuration. It is used for low leakage current applications in surface mounted circuits.

.

75V Continuous reverse voltage maximum

.

500mA Repetitive peak forward current

.

3pA Low reverse current typ.

.

AEC-Q101 qualified
