B57891S502F8

B57891S502F8图片1
B57891S502F8图片2
B57891S502F8图片3
B57891S502F8图片4
B57891S502F8图片5
B57891S502F8图片6
B57891S502F8图片7
B57891S502F8图片8
B57891S502F8图片9
B57891S502F8概述

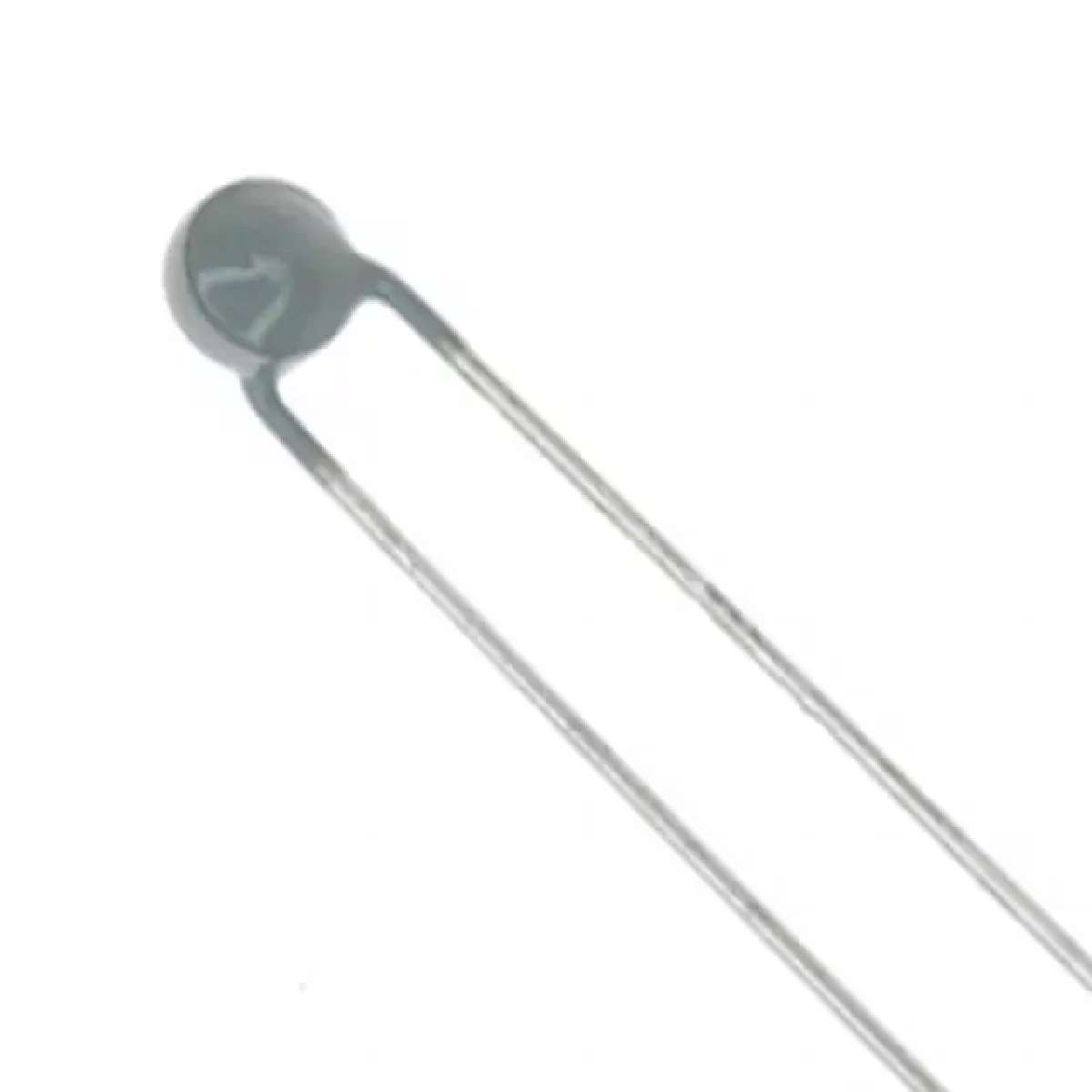

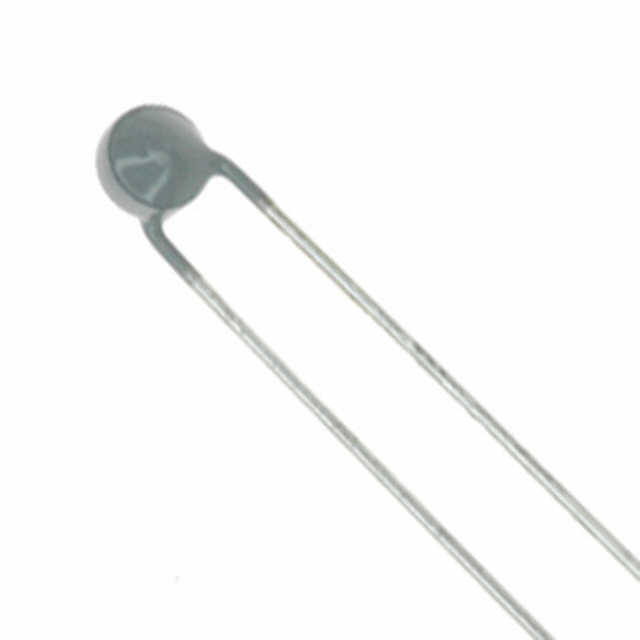

EPCOS B57891S502F8 Thermistor, NTC, 5KΩ, B57891S Series, 3980K, Through Hole, Radial Leaded

This thermistor from EPCOS is a great way to measure temperature while taking up no space. It has 2 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 4.5Max mm deep.


艾睿:
Thermistor NTC 5K Ohm 1% 2-Pin Radial 3980K Bulk


Chip1Stop:
Thermistor NTC 5K Ohm 1% 2-Pin Radial 3980K Bulk


Newark:
# EPCOS  B57891S502F8  Thermistor, NTC, 5 kohm, B57891S Series, 3980 K, Through Hole, Radial Leaded


B57891S502F8中文资料参数规格
技术参数

额定功率 200 mW

电阻 5 kΩ

阻值偏差 ±1 %

额定功率Max 200 mW

工作温度Max 155 ℃

工作温度Min -55 ℃

精度 ±1 %

封装参数

安装方式 Through Hole

引脚数 2

封装 Disc, 4.5mm Dia x 4.5mm W

外形尺寸

长度 38 mm

宽度 4.5 mm

脚长度 37 mm

封装 Disc, 4.5mm Dia x 4.5mm W

物理参数

工作温度 -40℃ ~ 125℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买B57891S502F8
型号: B57891S502F8
制造商: Epcos 爱普科斯
描述:EPCOS B57891S502F8 Thermistor, NTC, 5KΩ, B57891S Series, 3980K, Through Hole, Radial Leaded
