BAT54A,215

NXP  BAT54A,215  小信号肖特基二极管, 双共阳极, 30 V, 200 mA, 320 mV, 600 mA, 150 °C

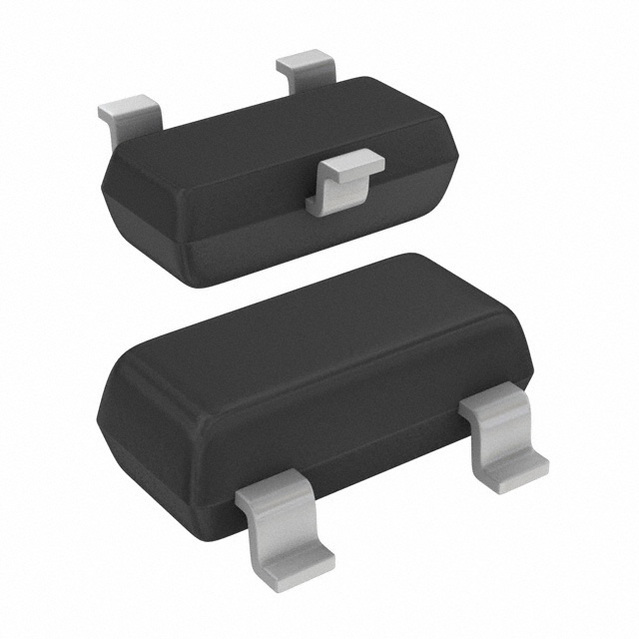

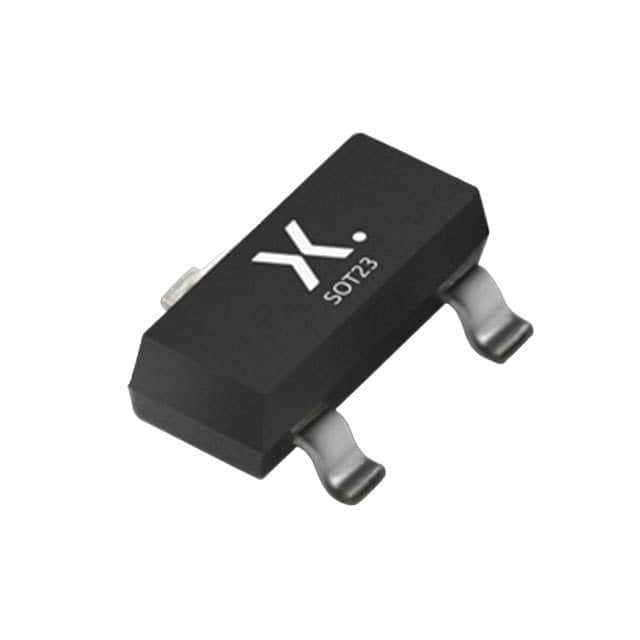

The from is a Planar schottky barrier diodes with an integrated guard ring for stress protection encapsulated in a small 3 pin SOT23 TO-236AB surface mounted plastic package. This barrier diode typically used for ultra high speed switching, line termination, voltage clamping and reverse polarity protection.

.

AEC-Q101 qualified

.

Dual common anode configuration

.

Forward current of 200mA

.

Non repetitive peak forward current Ifsm of 600mA

.

Forward voltage of 800mV at IF = 100 mA

.

Ambient temperature range from -55°C to 150°C

.

Repetitive reverse voltage Vrrm of 30V

.

Total power dissipation of 250mW
