B59339A1202P20

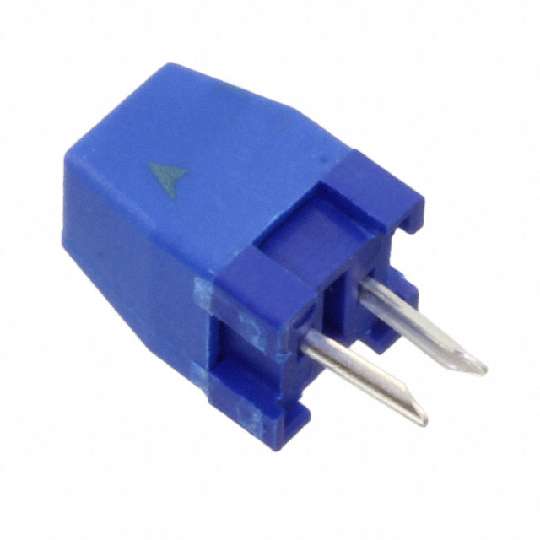

B59339A1202P20图片1
B59339A1202P20图片2
B59339A1202P20概述

Thermistor PTC 2KΩ 25% 2Pin Radial Tray

Simple to implement like a resistor this thermistor developed by EPCOS will measure temperature. This part has a minimum operating temperature of -25 °C and a maximum of 125 °C. It has 2 terminals. The item will be shipped in tray orientation. This product is 6.3Max mm long, 9Max mm tall and 6.3Max mm deep.


艾睿:
Thermistor PTC 2K Ohm 25% 2-Pin Radial Blister Tray


Allied Electronics:
PTC THERMISTOR J 289-P 120-A 20 3X2


B59339A1202P20中文资料参数规格
技术参数

额定电流 150 mA

电阻 2 kΩ

阻值偏差 ±25 %

工作温度Max 125 ℃

工作温度Min -25 ℃

额定电压Max 265 V

封装参数

安装方式 Surface Mount

封装 Disc

外形尺寸

高度 9 mm

脚长度 4 mm

封装 Disc

物理参数

工作温度 -25℃ ~ 125℃

其他

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买B59339A1202P20
型号: B59339A1202P20
制造商: Epcos 爱普科斯
描述:Thermistor PTC 2KΩ 25% 2Pin Radial Tray
