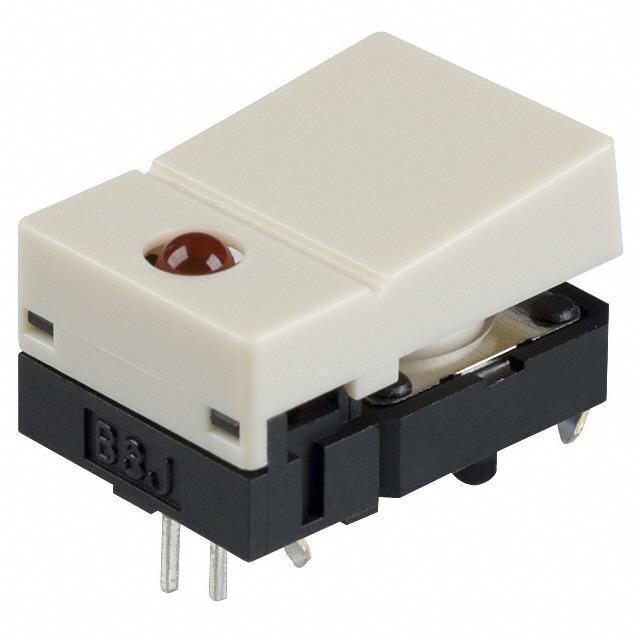

B3J-2000

轻触式开关 Omron B3J铰接型轻触式开关 通过勾型铰链结构提供快速出众的扣合作用 配备 1 或 2 个 LED 或不配备 LED 提供各种颜色（五种标准颜色）的铰接按钮 触点外形单刀单掷－常开 最大切换容量：24V 直流时为 50 mA ### 触控

轻触式 B3J

铰接型轻触式开关

通过勾型铰链结构提供快速出众的扣合作用

配备 1 或 2 个 LED 或不配备 LED

提供各种颜色（五种标准颜色）的铰接按钮

触点外形单刀单掷－常开

最大切换容量：24V 直流时为 50 mA

得捷:
SWITCH PUSH SPST-NO 0.05A 24V

立创商城:
开关

欧时:
Omron 灰色 按钮式 轻触式开关 B3J-2000, 单刀单掷 - 常开, 50 mA @ 24 V 直流 6.8mm

艾睿:
Want to use a force of pressure to turn on your circuit? Check out this hinged B3J-2000 tactile switch from Omron. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -25 °C to 70 °C. The B3J-2000 tactile switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This ivory hinge button actuator is 6.8 mm long. This product is 12 mm long, 10.3 mm tall and 18 mm deep.

Chip1Stop:
Switch Tactile N.O. SPST Hinge Button PC Pins 0.05A 24VDC 1.27N Thru-Hole

Verical:
Switch Tactile N.O. SPST Hinge Button PC Pins 0.05A 24VDC 1.27N Thru-Hole

Newark:
# OMRON ELECTRONIC COMPONENTS  B3J-2000  Tactile Switch, Non Illuminated, 24 V, 50 mA, 1.27 N, Solder, B3J Series

MASTER:
Switch Tactile N.O. SPST Hinge Button PC Pins 0.05A 24VDC 1.27N Thru-Hole

Electro Sonic:
Switch Tactile N.O. SPST Hinge Button PC Pins 0.05A 24VDC 1.27N Thru-Hole
