B82422H1223K000

EPCOS  B82422H1223K000  表面贴装高频电感器, B82422H系列, 22 µH, ± 10%, 1210 [3225 公制], 21 MHz, 1 ohm

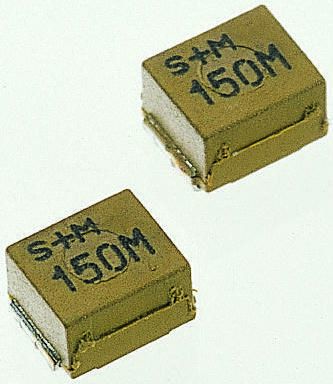

1210 B82422H SIMID 系列线绕器

Epcos 的 SIMID 系列线绕电感器可处理非常高的电流。SIMID 系列线绕电感器采用阻燃封装，具有高温度范围，且非常适用于直流/直流转换器和开关模式电源。

**特点和优势：**

• 激光焊接绕组

• 铁氧体磁鼓芯

• 适用于回流焊接，符合JEDEC J STD 020C

• 符合 AEC-Q200

欧时:
### Epcos 1210 B82422H SIMID Series Wire Wound InductorsFrom Epcos, the SIMID Series Wire Wound Inductors features is capable of handling very high currents. With a flame retardant encapsulation, the SIMID series of wire wound inductors have a high temperature range, and are well suited to DC/DC converters and switch mode power supplies.**Features and Benefits:** • Laser welded winding • Ferrite drum core • Suitable for reflow soldering acc. JEDEC J STD 020C • Qualified to AEC-Q200 ### 表面安装 1210 电感器（扼流圈）

e络盟:
高频电感器, 22 µH, B82422H系列, 330 mA, 1210 [3225 公制], 绕线, 1 ohm

Verical:
Inductor Power Chip Molded Wirewound 22uH 10% 2.52MHz 12Q-Factor Ferrite 0.33A 1Ohm DCR 1210 Automotive T/R

Newark:
# EPCOS  B82422H1223K000  Surface Mount High Frequency Inductor, B82422H Series, 22 µH, 330 mA, 1210 [3225 Metric], Wirewound
