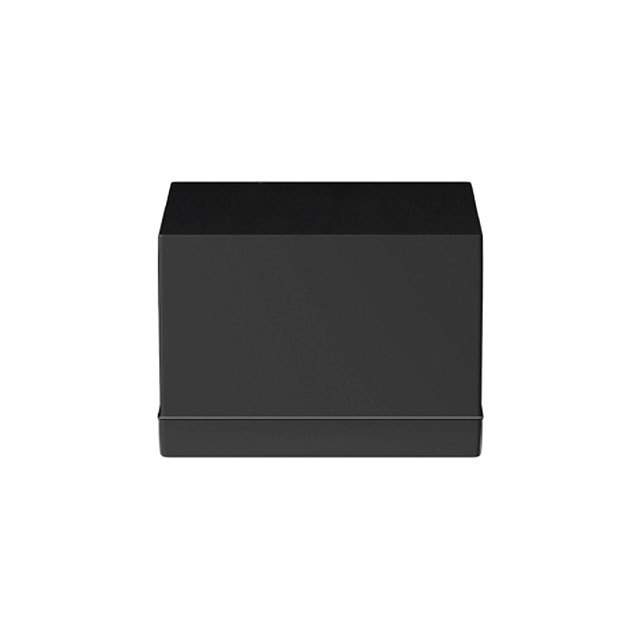

EPCOS B82432A1105K 表面贴装高频电感器, B82432A系列, 1 mH, ± 10%, 1812 [4532 公制], 2.3 MHz, 32 ohm
The is a surface mount High Frequency Inductor with ferrite core. This B82432A inductor features ultrasonic-welded winding with flame-retardant moulding. This inductor"s terminals are made of CuSn6 base, Cu/Ag layer and electro-plated terminations. Supports 2.3MHz resonance frequency and ±10% of inductance tolerance. It is suitable for reflow soldering.
- .
- High Q factor
- .
- High resonance frequency
额定电流 55 mA
容差 ±10 %
电感 1 mH
自谐频率 2.3 MHz
Q值 30.0
电阻 31.0 Ω
共振频率 2.30 MHz
电感公差 ±10 %
测试频率 100 kHz
电阻DC） ≤32 Ω
额定电流DC 55 mA
电阻DC Max 32 Ω
安装方式 Surface Mount
引脚数 2
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 3.2 mm
封装公制 4832
封装 1812
工作温度 -55℃ ~ 125℃
包装方式 Cut Tape CT
制造应用 Communications & Networking, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
