B57541G1103F概述

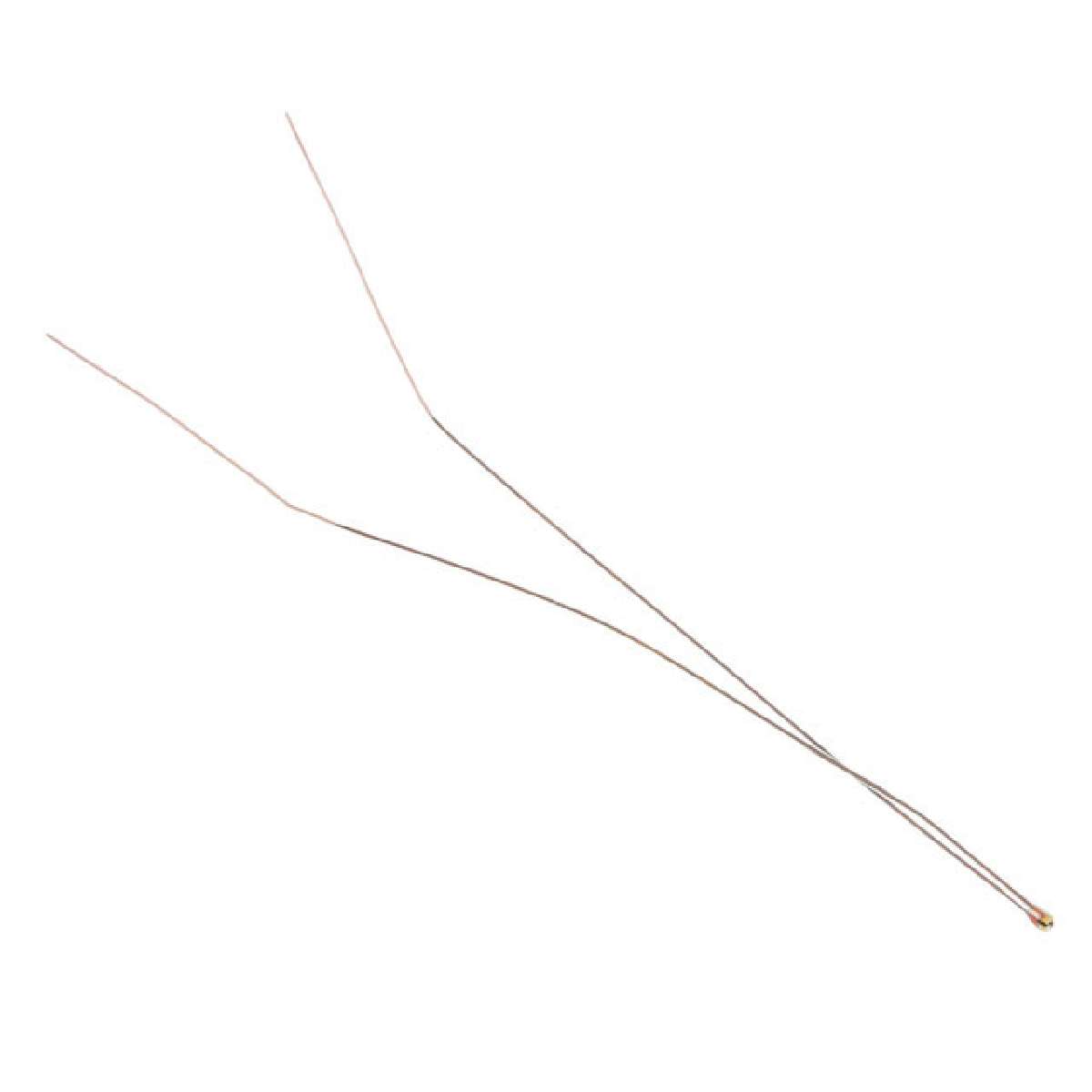

Thermistor NTC 10KΩ 1% 2Pin Wire 3478K >= -3.5 Bulk

Sample accurate temperature measurements by adopting this thermistor manufactured by EPCOS. It has 2 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 5Max mm tall with a diameter of 1.4Max mm.


艾睿:
Thermistor NTC 10K Ohm 1% 2-Pin Wire 3478K >= -3.5 Bulk


Verical:
Thermistor NTC 10K Ohm 1% 2-Pin Wire 3478K >= -3.5 Bulk Automotive


B57541G1103F中文资料参数规格
技术参数

电阻 10000 Ω

阻值偏差 ±1 %

额定功率Max 18 mW

封装参数

安装方式 Through Hole

引脚数 2

封装 Bead, Glass

外形尺寸

高度 5 mm

脚长度 21.5 mm

封装 Bead, Glass

物理参数

工作温度 -55℃ ~ 250℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买B57541G1103F
型号: B57541G1103F
描述:Thermistor NTC 10KΩ 1% 2Pin Wire 3478K >= -3.5 Bulk
替代型号B57541G1103F
型号/品牌 代替类型 替代型号对比

B57541G1103F

Epcos 爱普科斯

当前型号

当前型号

B57540G0103F000

爱普科斯

类似代替

B57541G1103F和B57540G0103F000的区别
