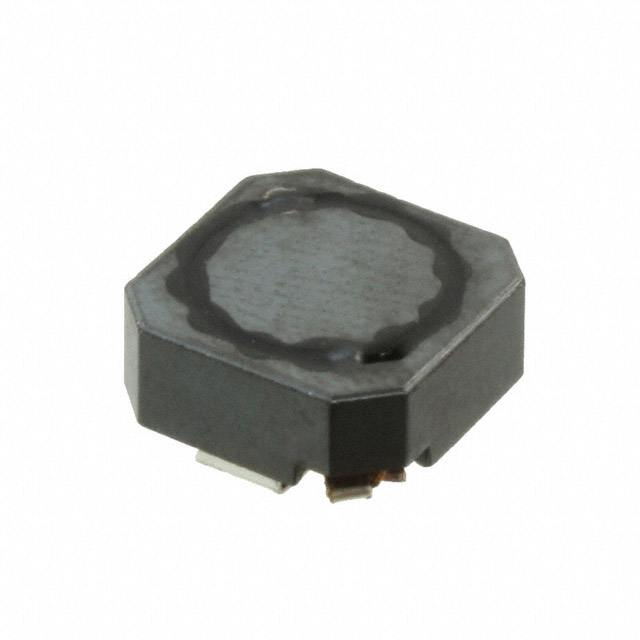

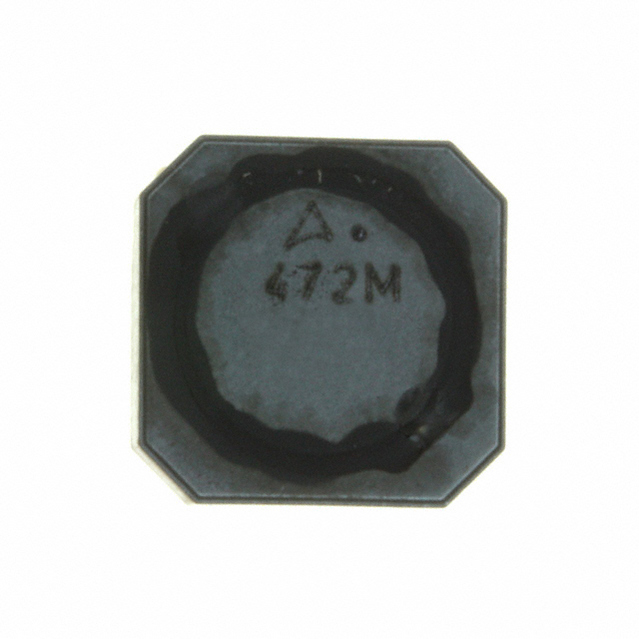

EPCOS B82464G4472M 表面贴装功率电感器, B82464G4系列, 4.7 µH, ± 20%, 屏蔽, 0.015 ohm, 4.9 A
The is a surface mount shielded Power Inductor with ferrite core. This B82464G series magnetically shielded inductor features enamel copper wire and winding welded to terminals. This inductor"s terminals are made of CuFe2P base Ag/Sn layer and electro-plated terminals. Supports 0.1MHz frequency and ±20% of inductance tolerance. It is suitable for reflow soldering.
- .
- High rated current
- .
- Low DC resistance
- .
- Qualified to AEC-Q200 standard
额定电流 4.9 A
容差 ±20 %
电感 4.7 µH
自谐频率 37 MHz
电阻 15.0 mΩ
共振频率 37.0 MHz
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC） ≤15 mΩ
电阻DC Max 0.015 Ω
安装方式 Surface Mount
引脚数 2
封装 10.4mm x 10.4mm x 4.8mm
长度 10.4 mm
宽度 10.4 mm
高度 4.8 mm
封装 10.4mm x 10.4mm x 4.8mm
工作温度 -55℃ ~ 150℃
包装方式 Cut Tape CT
制造应用 Industrial, Automotive, 工业, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B82464G4472M Epcos 爱普科斯 | 当前型号 | 当前型号 |
B82464G4472M000 爱普科斯 | 功能相似 | B82464G4472M和B82464G4472M000的区别 |
MCSDC1006-4R7MU Multicomp | 功能相似 | B82464G4472M和MCSDC1006-4R7MU的区别 |
