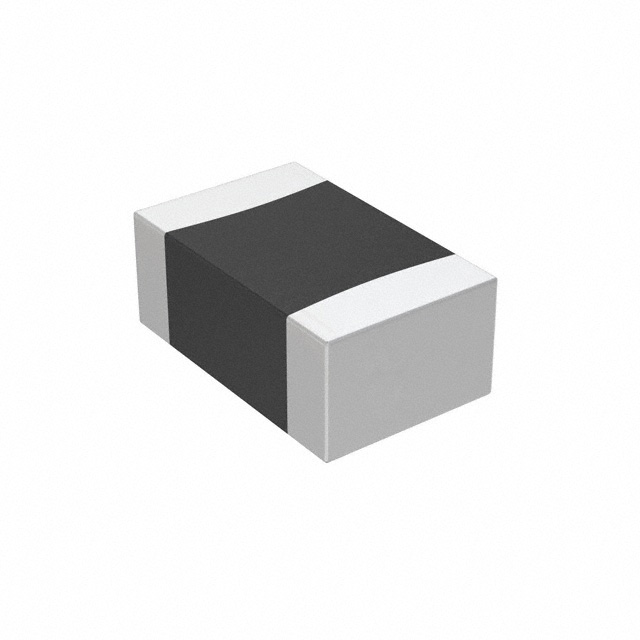

EPCOS B59721A0100A062 热敏电阻, PTC, 0805, 100°C, ±5°C
The B59721 series SMD PTC Thermistor used as limit temperature sensors. It is available in wide range of EIA case sizes 0402, 0603 and 0805, superior series.
- .
- Qualification based on AEC-Q200
- .
- Reflow soldering only
- .
- Fast and reliable response
- .
- UL approval
- .
- Certified in accordance with IEC 60738-1 and IEC 60730-1
- .
- Lead-free terminations tinned for EIA case sizes 0603 and 0805
- .
- Lead-free ceramics for EIA case sizes 0402 and 0805
工作电压 32.0V max
电阻 680 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
工作电压Max 32 VDC
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.8 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, 电源管理, 便携式器材, Automotive, Portable Devices, 消费电子产品, 车用, 照明, Safety, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B59721A0100A062 Epcos 爱普科斯 | 当前型号 | 当前型号 |
B59721A100A62 爱普科斯 | 完全替代 | B59721A0100A062和B59721A100A62的区别 |
