BZ-2R

HONEYWELL  BZ-2R  微型开关, 摁入式

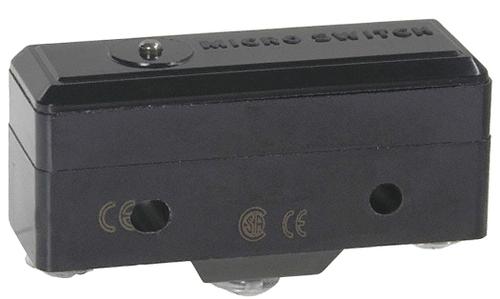

BZ Series Standard Basic Switch, Single Pole Double Throw Circuitry, 15 A at 250 Vac, Pin Plunger Actuator, 2,5 N - 3,61 N [9 oz -13 oz] Operating Force, Silver Contacts, Solder Termination, CE, CSA, DEMKO, UL.

欧时:
Switch SPDT 15A Pin Plunger Solder

艾睿:
This BZ-2R snap-action switch from Honeywell can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 16 A @ 250VAC. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BZ-2R snap action switch has a solder termination style. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 250 VDC. This product is 49.28 mm long, 22.61 mm tall and 17.45 mm deep.

Allied Electronics:
Basic Switch, Large, SPDT, 15 Amps, Pin Plunger, Solder Termination

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Solder 16A 600VAC 250VDC 186.42VA 3.61N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 16A 600VAC 250VDC 186.42VA 3.61N Screw Mount Solder Automotive

Newark:
# HONEYWELL  BZ-2R  Microswitch, BZ Series, SPDT, Solder, 15 A, 250 VAC, 250 VDC

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, Pin Plunger, Solder Termination, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC

Online Components:
MICRO SWITCH™ Premium Large Basic Switches: BA Series, Single Pole Double Throw SPDT, 20 A 125/250/480 Vac, ENEC 20 A ...

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
