BZ-2RW8024

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, ENEC 16A 250VAC, 8,3mm [0.326in] Diameter Additional Overtravel Plunger, Switch will Withstand Temperature of 121℃ [250 °F], Binding Head Combination Screw Termination with Cup Washers, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC

is manufactured by Sensing and is categorized in the Snap Action, Limit Switches category. BZ-2RW8024 is described as SWITCH SNAP ACTION SPDT 15A 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.

艾睿:

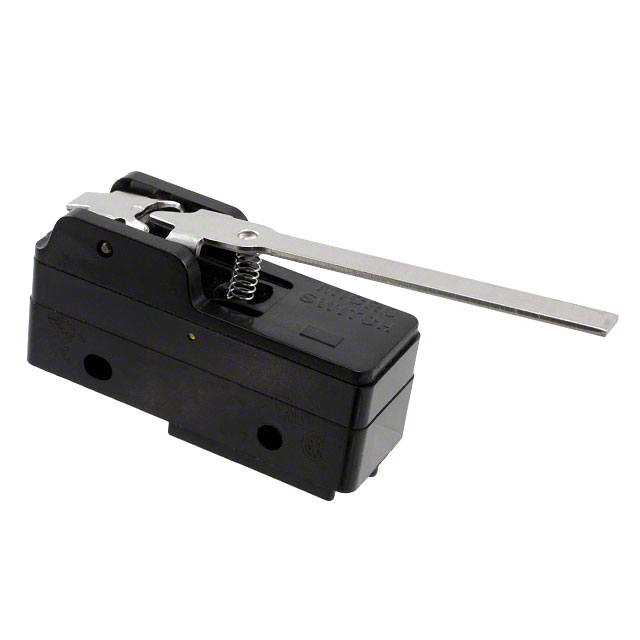

The BZ-2RW8024 snap-action switch from Honeywell makes opening or closing your circuit a fast operation. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BZ-2RW8024 snap action switch has a quick connect termination style. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC. This product is 74.78 mm long, 26.42 mm tall and 17.45 mm deep.

Allied Electronics:
Large Basics

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 16A 480VAC 250VDC 186.42VA 0.7N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Straight Lever 16A 480VAC 250VDC 186.42VA 0.7N Screw Mount Quick Connect Automotive

Newark:
# HONEYWELL  BZ-2RW8024  Microswitch, BZ Series, SPDT, Solder, 15 A, 480 VAC, 250 VDC

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, 63,5 mm [2.50 in] Straight Lever Actuator, Switch will Withstand Temperature of 121 °C [250 °F], Solder Termination, Mounting Hole

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
