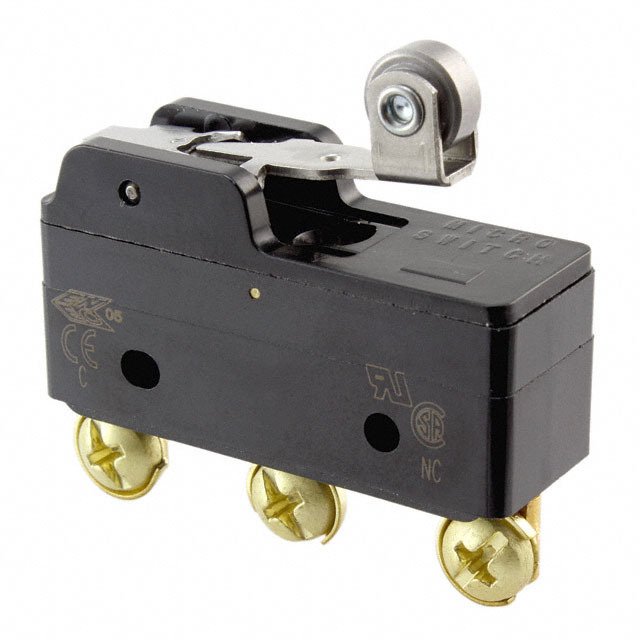

BZ-RW842214-P4

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, ENEC 16A 250VAC, 49,6mm [1.953in] Flexible Leaf Actuator, 3-48 UNC Thread Screw Termination Inserts, Screws Furnished Unassembled, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC

**BZ Series Switches**

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

艾睿:
If you&s;re looking for rapid switching to close your circuit use this BZ-RW842214-P4 snap-action switch from Honeywell. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BZ-RW842214-P4 snap action switch has a screw termination style. This product is 50.55 mm long, 50.09 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC.

Allied Electronics:
Basic Switch, SPDT, 15A, Screw Terminal

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Screw 16A 480VAC 186.42VA 0.56N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever 16A 480VAC 186.42VA 0.56N Screw Mount Screw Automotive

Newark:
# HONEYWELL  BZ-RW842214-P4  Microswitch, BZ Series, SPDT, Screw, 15 A, 480 VAC

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, 26,7mm [1.050 in] Sintered Roller Lever Actuator, Integral Left Side Facing 8-32 UNC Binding Head Combination Screw Termination wi

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
