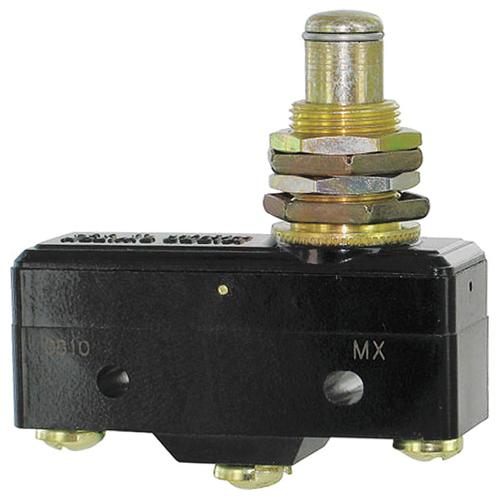

BZ-2RQ1-A2

a 型开关可选择执行器 通过螺钉或杯状垫圈连接 面板安装类型应该使用提供的固定螺母进行衬套安装 轴环滚轮型号仅以一个方向操作 可选端子盖具有击穿孔，可提供布线位置选择 触点额定值；15A @ 480V 交流/28V 直流 触点材料；银 ### 认可UL; CSA### 工业塑料外壳

大负荷 a 型

可选择执行器

通过螺钉或杯状垫圈连接

面板安装类型应该使用提供的固定螺母进行衬套安装

轴环滚轮型号仅以一个方向操作

可选端子盖具有击穿孔，可提供布线位置选择

触点额定值；15A @ 480V 交流/28V 直流

触点材料；银

### 认可

UL; CSA

欧时:
Switch Large Precision Snap Action

艾睿:
This BZ-2RQ1-A2 snap-action switch from Honeywell can be actuated with very little physical force. This device has a maximum current rating of 15. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-2RQ1-A2 snap action switch has a screw termination style. This product is 49.3 mm long and 17.5 mm.

Allied Electronics:
Large Switch; Basic; Precision Snap Acting; SPDT; Bushing Mount; Screw Terminal

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger Screw 15A 3.61N Panel Mount Automotive

TME:
Microswitch; with lever; SPDT; 15A/250VAC; ON-ON; Positions:2

Verical:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger 15A 125VAC 3.61N Panel Mount Screw Automotive

Newark:
Microswitch, Standard, Overtravel Plunger, SPDT, Screw, 15 A, 250 VDC

MASTER:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 125 Vac, Overtravel Plunger Actuator, 2,5 N - 3,61 N [9 - 13 oz] Operating Force, Silver Contacts, Screw Termination

Online Components:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 125 Vac, Overtravel Plunger Actuator, 2,5 ...

GOPHER:
Basic Snap-action Switch SPDT 15 AMP SCREW TERMINAL BUSHING MOUNT OVERTRAVEL PLUNGER ACTUATOR, 9-13 OUNCE OPERATING MICRO SWITCH

Electro Sonic:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 125 Vac, Overtravel Plunger Actuator, 2,5 ...
