Switch Snap Action N.O./N.C. SPDT Plunger Screw 16A 480VAC 250VDC 186.42VA 3.61N Screw Mount

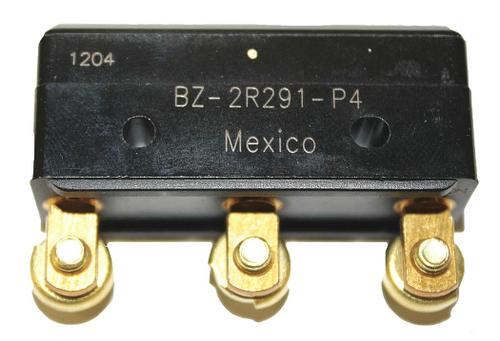

is manufactured by Sensing and is categorized in the Snap Action, Limit Switches category. BZ-2R291-P4 is described as SWITCH SNAP ACTION SPDT 15A 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.
贸泽:
Basic / Snap Action Switches SPDT 15A 250Vac Scrw Term Lrg Basic SW
艾睿:

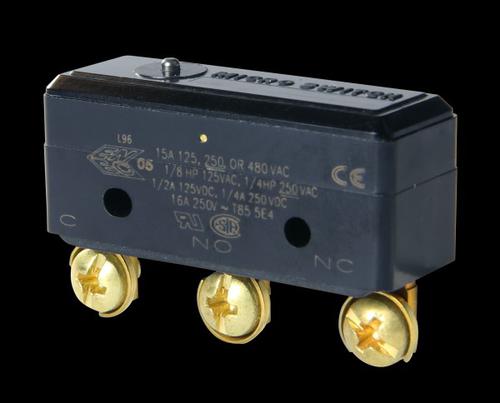

This BZ-2R291-P4 snap-action switch from Honeywell can be actuated with very little physical force. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-2R291-P4 snap action switch has a screw termination style. This product is 50.55 mm long, 33.78 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC.
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Plunger Screw 16A 480VAC 250VDC 186.42VA 3.61N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Plunger 16A 480VAC 250VDC 186.42VA 3.61N Screw Mount Screw Automotive
Newark:
# HONEYWELL BZ-2R291-P4 Microswitch, BZ Series, SPDT, Screw, 15 A, 480 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Pin Plunger Actuator, Silver Contacts, Screw Termination
Electro Sonic:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Pin Plunger Actuator, Silver ...
