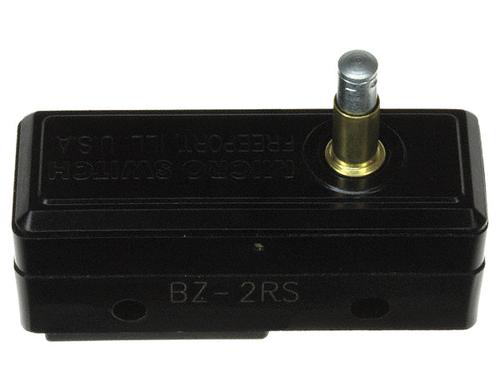

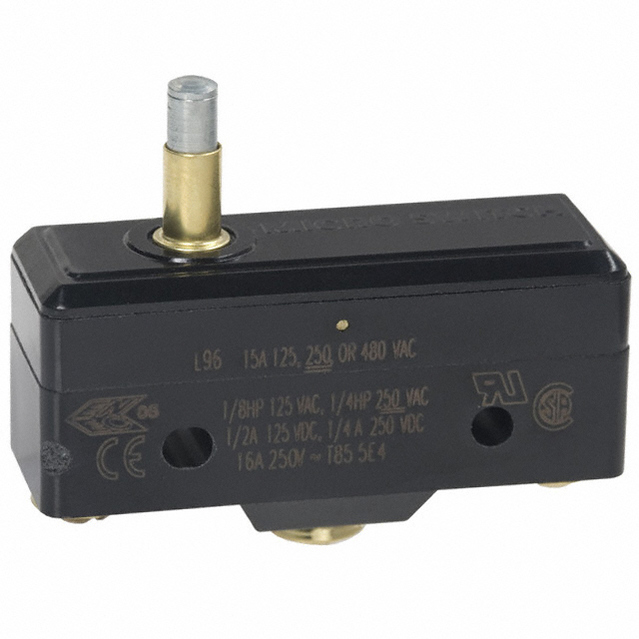

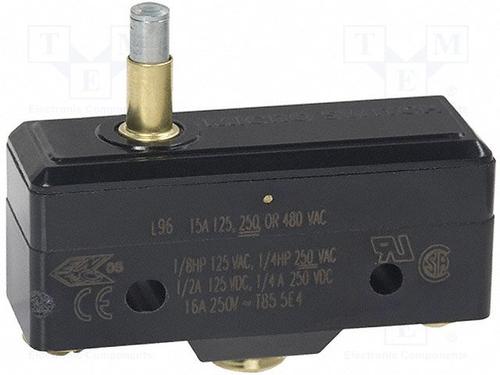

HONEYWELL BZ-2RS-A2 微动开关, BZ系列, SPDT, 拧紧, 15 A, 125 VAC, 250 VDC
The is a single-pole double-throw SPDT premium large Standard Basic Microswitch with an over-travel plunger actuator and screw terminations. The MICRO SWITCH™ BZ series standard basic switch is used for simple or precision ON/OFF application needs and also end of limit, presence/absence and manual operator interface functions. The snap action switch ganged together and actuated by a single actuator. Field adjustable operating point is an option for the switch.
- .
- Low operating force and differential travel
- .
- Long mechanical life up to 20000000 cycles at 95% survival
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Easy installation
- .
- Tight hysteresis/differential travel
- .
- Enhanced performance
额定电压DC 125 V
额定电压AC 125 V
额定电流 15 A
触点类型 SPDT
触点额定电流 15.0 A
额定电流Max 15 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 125 VAC
安装方式 Chassis, Screw Terminals
封装 125
长度 49.3 mm
宽度 17.5 mm
封装 125
触点材质 Silver
材质 Plastic
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 测试与测量, 医用, Medical, Industrial, 国防, 军用与航空, Logistics, 军用与航空, 后勤, Aerospace, Defence, Military, 国防, 消费电子产品, Consumer Electronics, Test & Measurement, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZ-2RS-A2 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
Z-15GS-B 欧姆龙 | 功能相似 | BZ-2RS-A2和Z-15GS-B的区别 |
