BZ-R概述

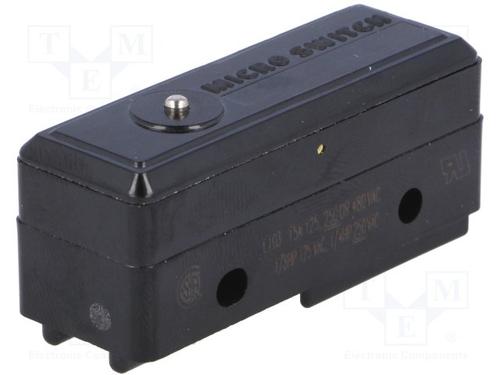

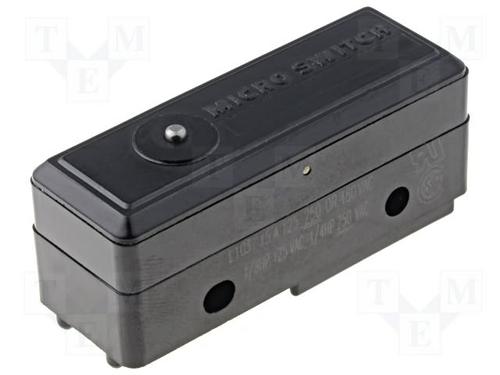

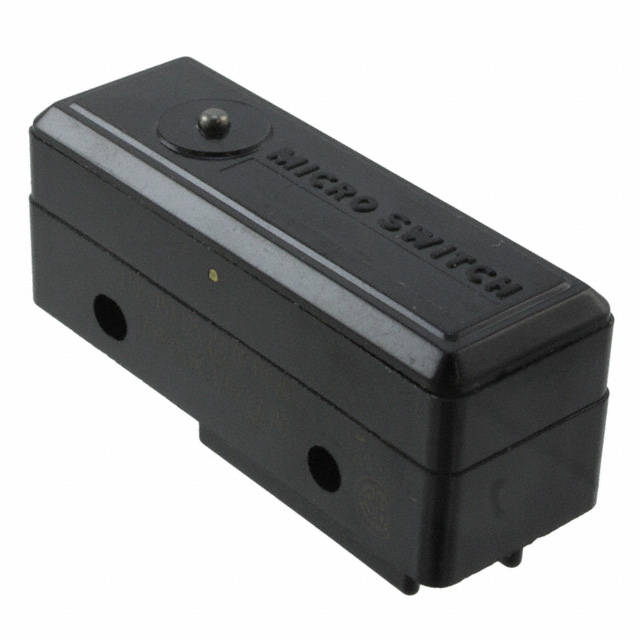

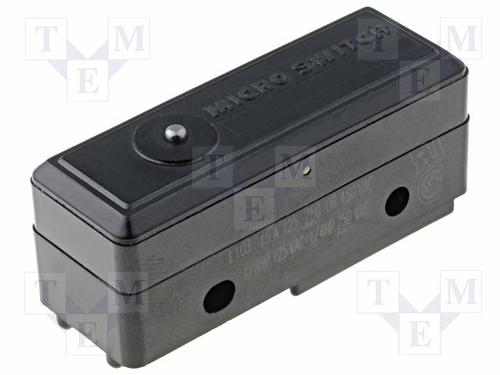

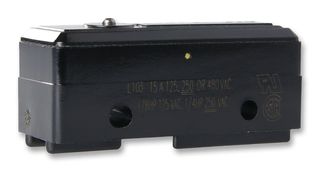

HONEYWELL BZ-R 微动开关, BZ系列, SPDT, 焊接, 15 A, 480 VAC
The BZ series MICRO SWITCH™ Snap-action Switch for precision on/off applications, irrigation systems, semi-trailer trucks, timing devices, office equipment, manually operated devices and valves.
- .
- Low operating force and differential travel
- .
- Long mechanical life up to 20,000,000 cycles at 95% survival
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Operating in extreme temperatures
- .
- UL, CSA, ENEC and CE Certified
- .
- Tight hysteresis/differential travel
- .
- Variants for extreme conditions
- .
- Enhanced performance
- .
- Easy installation reduces overall cost
BZ-R中文资料参数规格
技术参数
额定电压DC 250 V
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 15A AC
触点类型 SPDT
额定电流Max 15A @480VAC
额定功率Max 186.42 VA
工作温度Max 85 ℃
工作温度Min -55 ℃
封装参数
安装方式 Screw, Quick Connect
外形尺寸
长度 49.28 mm
高度 21.34 mm
物理参数
触点材质 Silver
材质 Plastic
工作温度 -55℃ ~ 85℃
其他
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Medical, Agriculture, HVAC, Communications & Networking
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
海关信息
ECCN代码 EAR99
HTS代码 8536509055
