BZ-RW84431-A2

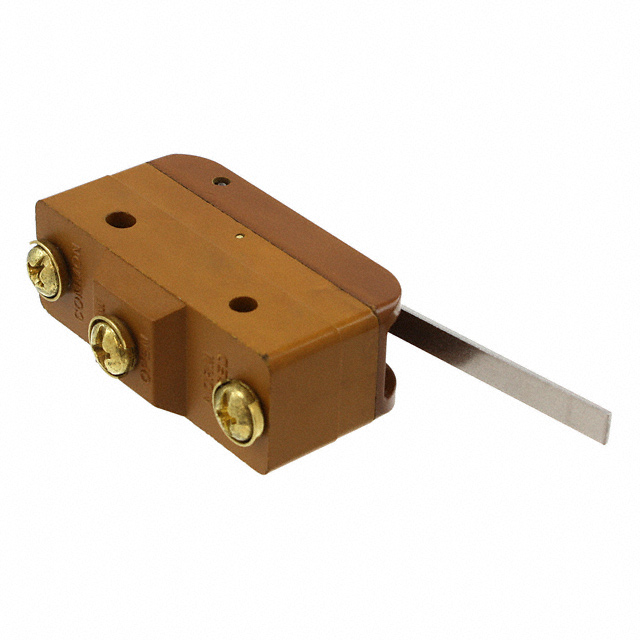

BZ-RW84431-A2图片1

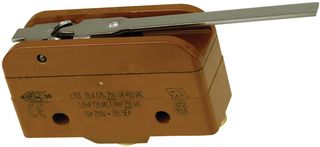

BZ-RW84431-A2图片2
BZ-RW84431-A2图片3
BZ-RW84431-A2图片4
BZ-RW84431-A2图片5
BZ-RW84431-A2图片6
BZ-RW84431-A2图片7
BZ-RW84431-A2图片8
BZ-RW84431-A2图片9
BZ-RW84431-A2概述

Switch Snap Action N.O./N.C. SPDT Lever Screw 16A 480VAC 186.42VA 0.1N Screw Mount

**BZ Series Switches**

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.


艾睿:
If you&s;re looking for rapid switching to close your circuit use this BZ-RW84431-A2 snap-action switch from Honeywell. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BZ-RW84431-A2 snap action switch has a screw termination style. This product is 75.13 mm long, 29.21 mm tall and 17.45 mm deep. The maximum AC voltage rating is 480 VAC.


Allied Electronics:
IP64 Snap Action Limit Switch, Roller Lever, Phenolic, NC, NO, 250V


Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Screw 16A 480VAC 186.42VA 0.1N Screw Mount


Verical:
Switch Snap Action N.O./N.C. SPDT Straight Lever 16A 480VAC 186.42VA 0.1N Screw Mount Screw Automotive


Newark:
# HONEYWELL  BZ-RW84431-A2  Microswitch, BZ Series, SPDT, Screw, 15 A, 480 VAC


MASTER:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Straight Lever Actuator, Silver Contacts, Screw Termination


Electro Sonic:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Straight Lever Actuator, Silver ...


BZ-RW84431-A2中文资料参数规格
技术参数

接触器类型 Straight Lever

额定电流 15 A

触点类型 SPDT

额定电流Max 16A @250VAC

额定功率Max 186.42 VA

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压 250 VAC

封装参数

安装方式 Screw

外形尺寸

高度 29.21 mm

物理参数

触点材质 Silver

材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买BZ-RW84431-A2
型号: BZ-RW84431-A2
描述:Switch Snap Action N.O./N.C. SPDT Lever Screw 16A 480VAC 186.42VA 0.1N Screw Mount
