HONEYWELL BA-2RV2-A2 微动开关, BA系列, SPDT, 拧紧, 20 A, 480 VAC, 250 VDC

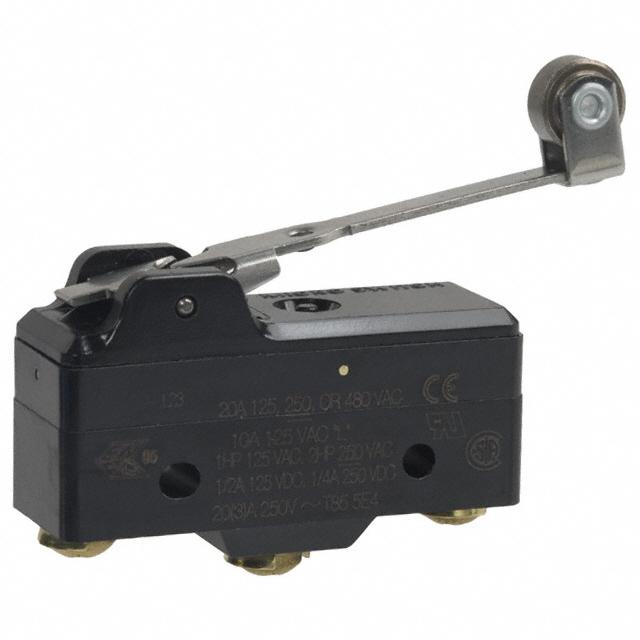

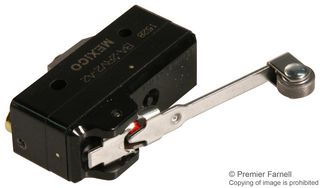

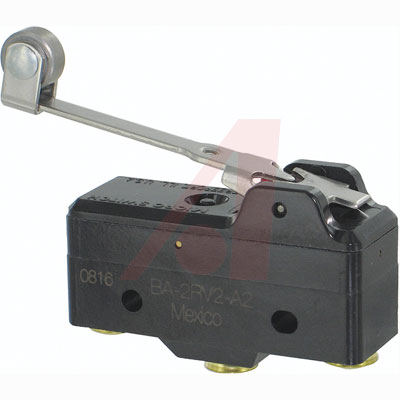

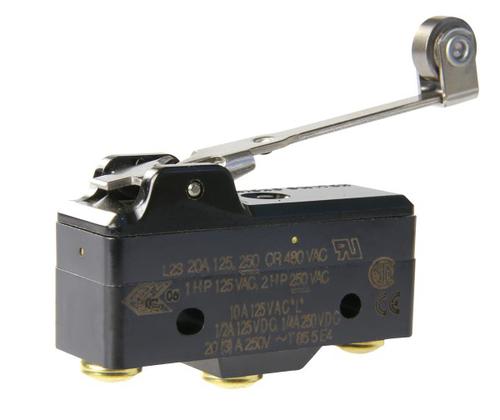

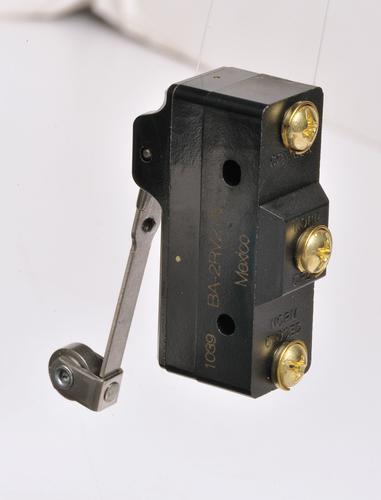

The is a single-pole double-throw SPDT premium large Standard Basic Microswitch with a roller lever actuator, screw termination and ON/OFF function. Accurate, reliable and repeatable, MICRO SWITCH™ BA series features precise operating characteristics and enhanced life. This premium switch offers precision operation and sensitive differential travel. The engineered design configured options with BA switch provides a wide variety of operating and interface characteristics.
- .
- Low operating force and differential travel
- .
- Long mechanical life up to 20000000 cycles at 95% survival
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Easy installation
- .
- Tight hysteresis/differential travel
- .
- Enhanced performance
接触器类型 Roller Lever
额定电流 20 A
触点类型 SPDT
触点额定电流 20.0 A
额定电流Max 20 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 125 VAC
安装方式 Chassis, Screw Terminals
封装 125
长度 49.3 mm
宽度 17.5 mm
封装 125
触点材质 Silver
材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 测试与测量, 工业, 医用, Test & Measurement, Logistics, Medical, 后勤, HVAC, Aerospace, Defence, Military, Consumer Electronics, 消费电子产品, 国防, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BA-2RV2-A2 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
A-20GV2-B 欧姆龙 | 功能相似 | BA-2RV2-A2和A-20GV2-B的区别 |
BA-2RL2-A2 霍尼韦尔 | 功能相似 | BA-2RV2-A2和BA-2RL2-A2的区别 |
HBS2KCB4SA055C C&K Components | 功能相似 | BA-2RV2-A2和HBS2KCB4SA055C的区别 |
