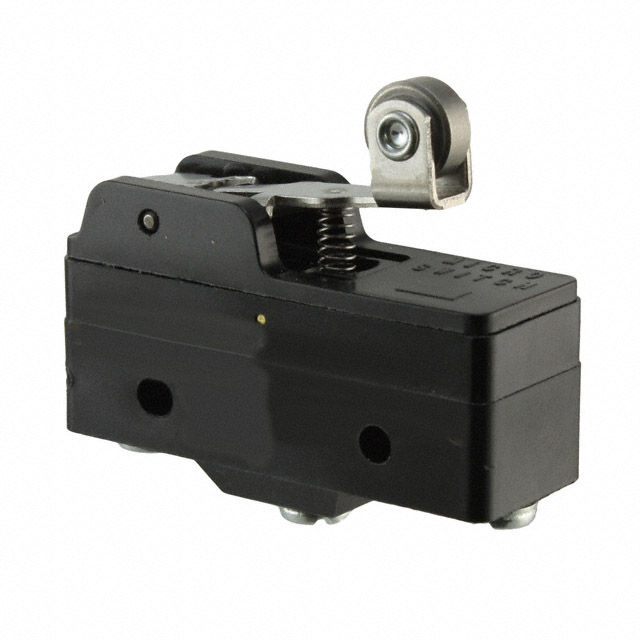

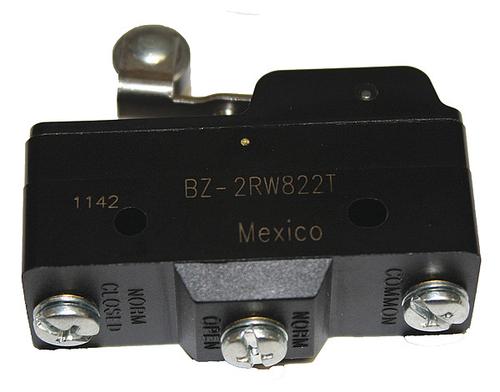

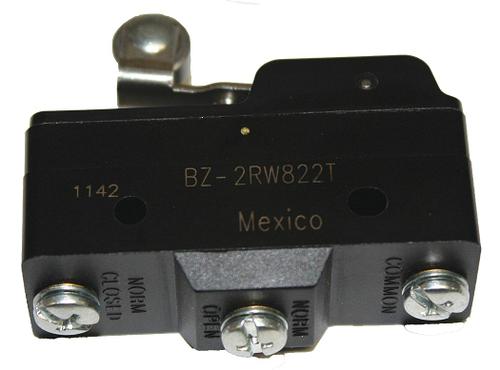

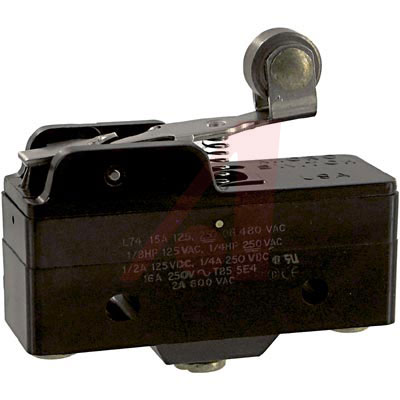

HONEYWELL BZ-2RW822T 微动开关, BZ系列, SPDT, 拧紧, 15 A, 250 VAC, 250 VDC
The is a single-pole double-throw SPDT premium large Standard Basic Microswitch with a roller lever actuator and screw terminations. The MICRO SWITCH™ BZ series standard basic switch is used for simple or precision ON/OFF application needs and also end of limit, presence/absence and manual operator interface functions. The snap action switch ganged together and actuated by a single actuator. Field adjustable operating point is an option for the switch.
额定电压DC 125 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 15 A
触点类型 SPDT
触点额定电流 15.0 A
额定电流Max 15A @250VAC
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 125 VAC
安装方式 Solder
长度 50.8 mm
宽度 17.8 mm
高度 25.4 mm
触点材质 Silver
材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 Logistics, Consumer Electronics, Industrial, HVAC, Medical, 国防, 军用与航空, 后勤, 消费电子产品, 工业, 医用, Aerospace, Defence, Military, 测试与测量, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
