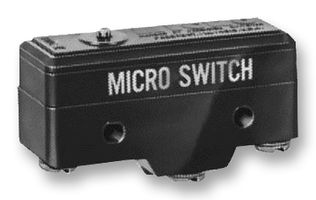

BZ-2R-D5

HONEYWELL  BZ-2R-D5.  微动开关, 针式柱塞, SPDT, 15A, 250V

**BZ Series Switches**

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

e络盟:
微动开关, 标准, 针式柱塞, SPDT, 快速连接, 15 A

艾睿:
If you&s;re looking for rapid switching to close your circuit use this BZ-2R-D5 snap-action switch from Honeywell. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-2R-D5 snap action switch has a quick connect termination style. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC. This product is 49.28 mm long, 33.02 mm tall and 17.45 mm deep.

Allied Electronics:
Basic Switch; BZ Series; SPDT; 15A 250VAC; Pin Plunger; QC Tabs; UL; CSA; ENEC

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 16A 480VAC 250VDC 186.42VA 3.61N Screw Mount Automotive

Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 16A 480VAC 250VDC 186.42VA 3.61N Screw Mount Quick Connect Automotive

Newark:
# HONEYWELL  BZ-2R-D5  Microswitch, SPDT, Pin Plunger, Quick Connect, 15 A, 250 V

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A 250 Vac, Pin Plunger, Flat-Base Case with 90° Quick Connect Termination, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC

Online Components:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...
