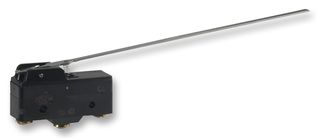

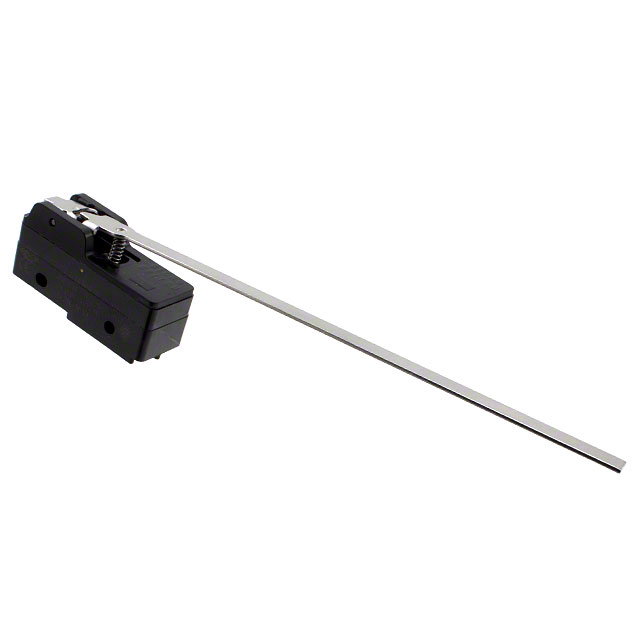

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, ENEC 16A 250VAC, 152,4mm [6in] Straight Lever Actuator, Solder Termination, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC
The BZ series MICRO SWITCH™ Snap-action Switch for precision on/off applications, irrigation systems, semi-trailer trucks, timing devices, office equipment, manually operated devices and valves.
- .
- Low operating force and differential travel
- .
- Long mechanical life up to 20,000,000 cycles at 95% survival
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Operating in extreme temperatures
- .
- UL, CSA, ENEC and CE Certified
- .
- Tight hysteresis/differential travel
- .
- Variants for extreme conditions
- .
- Enhanced performance
- .
- Easy installation reduces overall cost
额定电压DC 125 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 15A AC, 500mA DC
触点类型 SPDT
触点额定电流 15.0 A
额定电流Max 16A @250VAC
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
长度 49.28 mm
高度 26.42 mm
触点材质 Silver
材质 Plastic
工作温度 55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Medical, Agriculture, HVAC, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
