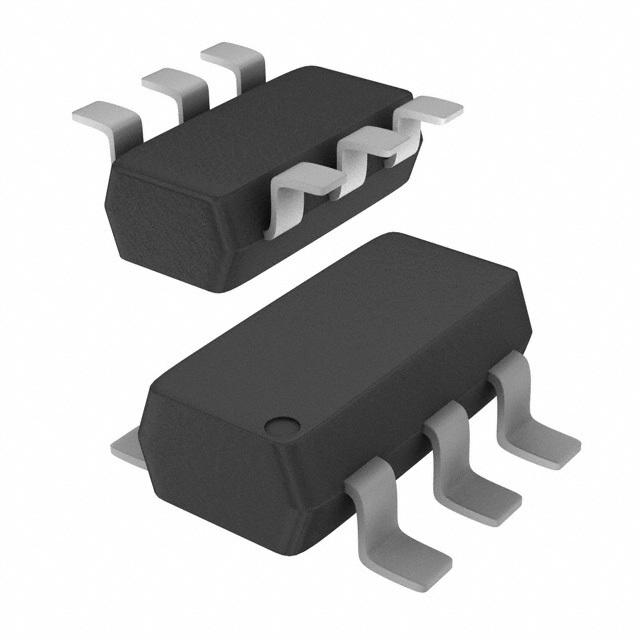

INFINEON BCR320UE6327HTSA1 发光二极管驱动器, 1输出, 恒流, 1.4V-27V输入, 10kHz开关, 16V/250mA输出, SC-74-6
显示驱动器，
得捷:
IC LED DRVR LINEAR 250MA SC74-6
欧时:
Infineon 恒流 LED 驱动器 BCR320UE6327HTSA1, 25 V 直流输入, 最大为 16 V输出, 300mA输出, SC74-6
贸泽:
LED照明驱动器 LED DRIVER
e络盟:
发光二极管驱动器, 1输出, 恒流, 1.4V-27V输入, 10kHz开关, 16V/250mA输出, SC-74-6
艾睿:
LED DRVR Automotive 6-Pin SC-74 T/R
安富利:
LED Driver, 10mA, 25V max Supply, 1W, AEC Q101, 6-Pin SC-74 T/R
Chip1Stop:
LED DRVR Automotive 6-Pin SC-74 T/R
立创商城:
BCR320UE6327HTSA1
TME:
Driver; LED controller; 250mA; Channels:1; 0÷25V; SC74
Verical:
LED DRVR Automotive 6-Pin SC-74 T/R
Newark:
# INFINEON BCR320UE6327HTSA1 LED Driver, Linear, 1.4V to 27V input, 3 Outputs, 10 kHz switch-freq., 1.4V/250 mA out, SC-74-6
输出接口数 1
输出电压 16 V
输出电流 250 mA
针脚数 6
耗散功率 1000 W
开关频率 10 kHz
输入电压Max 27 V
输入电压Min 1.4 V
输出电压Max 16 V
输出功率Max 500 mW
工作温度Max 150 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
输入电压 25 VDC
安装方式 Surface Mount
引脚数 6
封装 SOT-26-6
长度 2.9 mm
宽度 1.6 mm
高度 1.1 mm
封装 SOT-26-6
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, LED stripe lights, e.g. in commercial or residential LED lighting, 发光二极管照明, Automotive, 照明，标牌, LED Lighting, Automotive interior and exterior LED lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
