HONEYWELL BA-2RB-A2 微动开关, BA系列, SPDT, 拧紧, 20 A, 250 VAC, 250 VDC

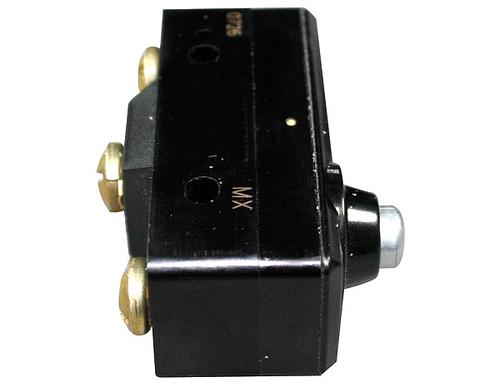

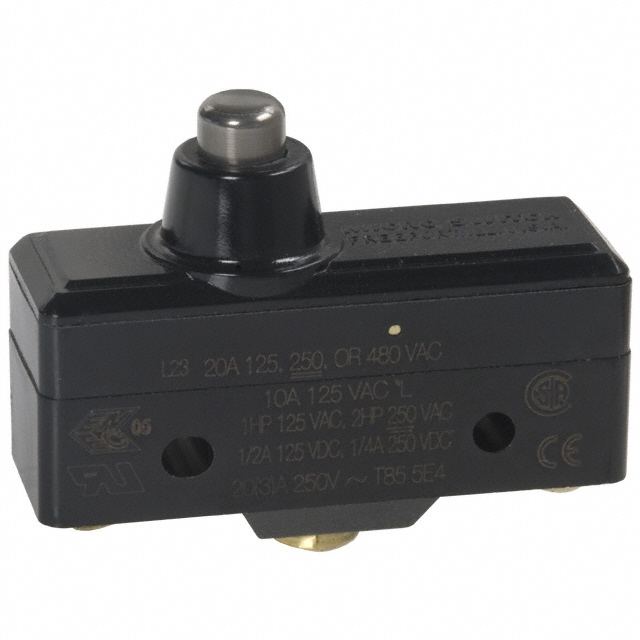

The is a single-pole double-throw SPDT premium large Standard Basic Microswitch with a plunger actuator, screw termination and ON/OFF function. Accurate, reliable and repeatable, MICRO SWITCH™ BA series features precise operating characteristics and enhanced life. This premium switch offers precision operation and sensitive differential travel. The engineered design configured options with BA switch provides a wide variety of operating and interface characteristics.
- .
- Low operating force and differential travel
- .
- Long mechanical life up to 20000000 cycles at 95% survival
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Easy installation
- .
- Tight hysteresis/differential travel
- .
- Enhanced performance
额定电压DC 125 V
额定电压AC 125 V
额定电流 20 A
触点类型 SPDT
触点额定电流 10.0 A
额定电流Max 20 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 125 VAC
安装方式 Chassis, Screw Terminals
封装 Phenolic
长度 49.3 mm
宽度 17.5 mm
封装 Phenolic
触点材质 Silver
材质 Plastic
工作温度 55℃ ~ 85℃
产品生命周期 Active
制造应用 Industrial, 测试与测量, 国防, 工业, 医用, Test & Measurement, Logistics, Medical, 后勤, HVAC, Aerospace, Defence, Military, Consumer Electronics, 消费电子产品, 军用与航空, 国防, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BA-2RB-A2 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
A-20GD-B7-K 欧姆龙 | 功能相似 | BA-2RB-A2和A-20GD-B7-K的区别 |
HBS2KCB4SD055C C&K Components | 功能相似 | BA-2RB-A2和HBS2KCB4SD055C的区别 |
