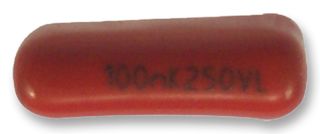

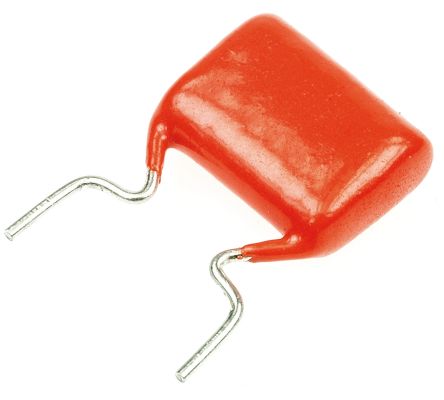

VISHAY BFC236845104 膜电容, MKT368系列, 0.1 µF, ± 10%, PET聚酯, 250 V
The Vishay MKT368 series capacitors are radial leaded, metalized polyester film capacitors. The capacitance range includes E12 decade values from 0.001µF to 1µF. These film capacitors are non polarized electrical capacitors with insulated polyester used as dielectric.
- .
- Rated DC voltage of 63V, 100V, 250V, 400V, 630V
- .
- Rated AC voltage of 40V, 63V, 160V, 220V, 250V
- .
- ±10% and ±5% tolerance
- .
- Maximum operating temperature is 85°C
- .
- Compliant to IEC 60384-2 standards
- .
- Flame retardant plastic case and epoxy resin coated with tinned wire
额定电压DC 250 V
额定电压AC 160 V
电容 0.1 µF
容差 ±10 %
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 10 mm
长度 12.5 mm
宽度 4.7 mm
高度 13.7 mm
封装 Radial, Box
引脚间距 10 mm
介质材料 Polyester
工作温度 -55℃ ~ 105℃
包装方式 Each
制造应用 Industrial, 便携式器材, 通用, 工业, 消费电子产品, Consumer Electronics, Portable Devices, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BFC236845104 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
QXK2E104KTPTZH 尼吉康 | 功能相似 | BFC236845104和QXK2E104KTPTZH的区别 |
160104K250D-F Cornell Dubilier ElectronicsCDE | 功能相似 | BFC236845104和160104K250D-F的区别 |
