BAS70-09P6FILM

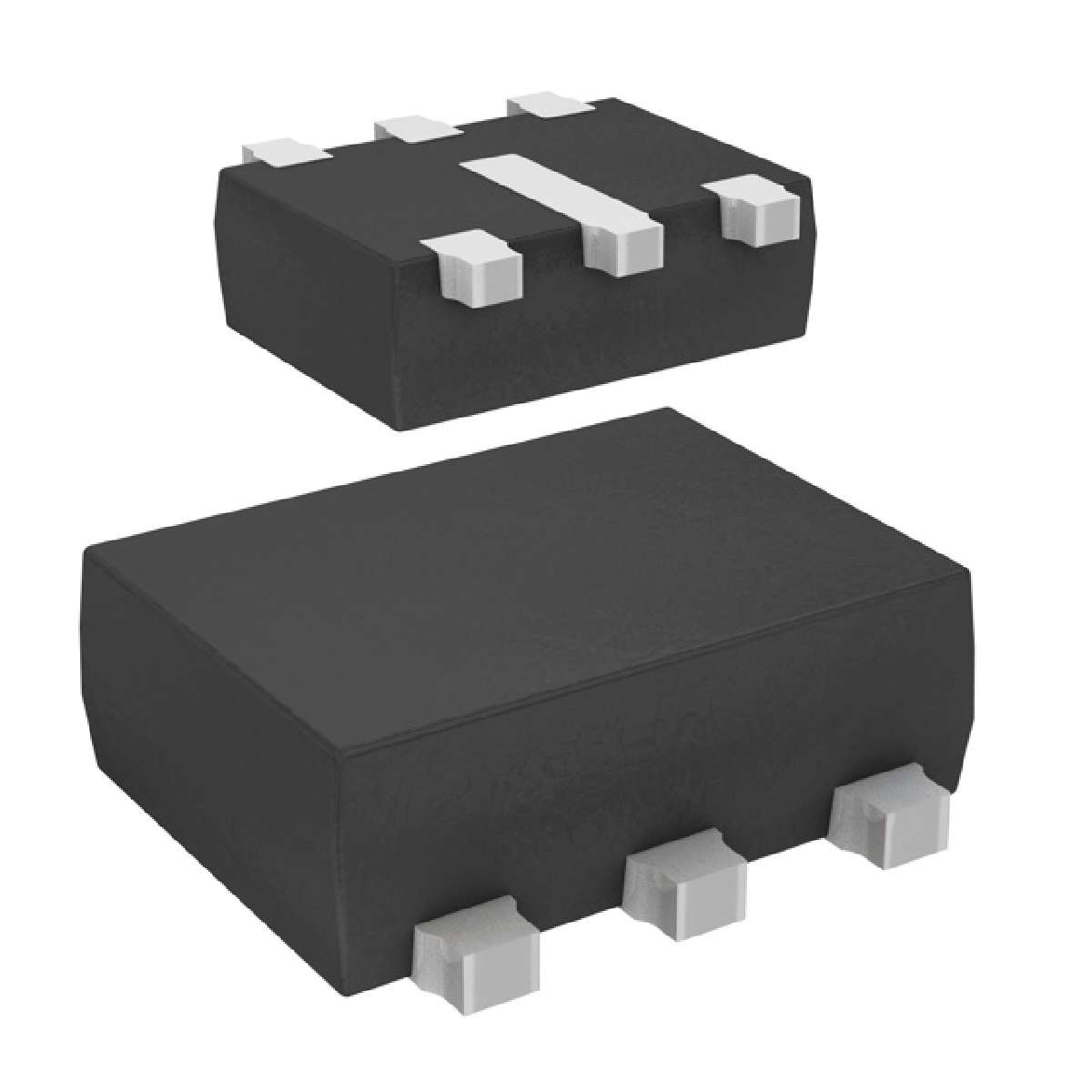

BAS70-09P6FILM图片1

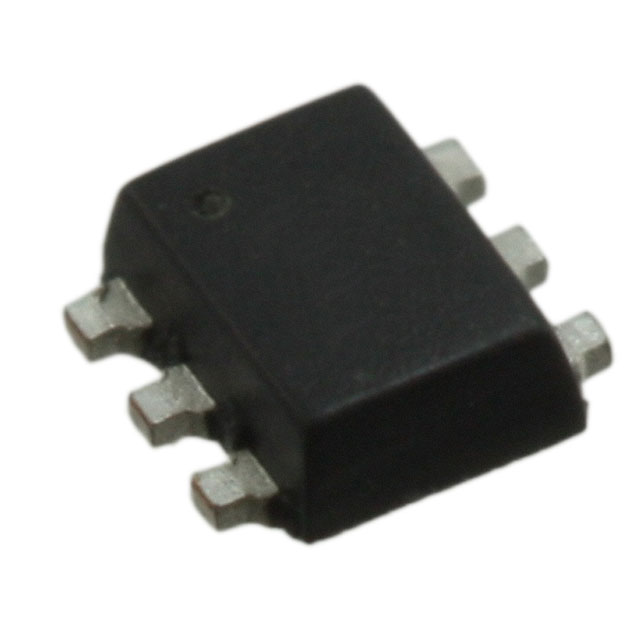

BAS70-09P6FILM图片2

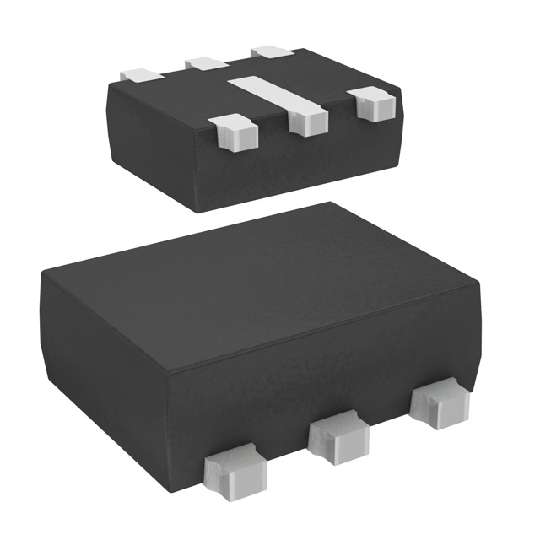

BAS70-09P6FILM图片3
BAS70-09P6FILM图片4
BAS70-09P6FILM图片5
BAS70-09P6FILM概述

低电容,低串联电感和电阻肖特基二极管 Low capacitance, low series inductance and resistance Schottky diodes

Diode Array 2 Independent Schottky 70V 70mA DC Surface Mount SOT-563, SOT-666


得捷:
DIODE ARRAY SCHOTTKY 70V SOT666


贸泽:
Schottky Diodes & Rectifiers Low cap Schottky


艾睿:
Converting from AC to DC is simple when using a Schottky diode BAS70-09P6FILM rectifier from STMicroelectronics. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 1 A, while its maximum continuous forward current is 0.07 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a dual anti parallel configuration.


Chip1Stop:
Diode Schottky 70V 0.07A 6-Pin SOT-666 T/R


BAS70-09P6FILM中文资料参数规格
技术参数

额定电压DC 70.0 V

额定电流 70.0 mA

正向电压 1V @15mA

正向电流 0.07 A

最大正向浪涌电流(Ifsm) 1 A

正向电压Max 1V @15mA

工作温度Max 150 ℃

工作温度Min 65 ℃

工作结温 150℃ Max

封装参数

安装方式 Surface Mount

引脚数 6

封装 SC-89-6

外形尺寸

长度 1.7 mm

宽度 1.3 mm

高度 0.6 mm

封装 SC-89-6

物理参数

工作温度 150 ℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买BAS70-09P6FILM
型号: BAS70-09P6FILM
描述:低电容,低串联电感和电阻肖特基二极管 Low capacitance, low series inductance and resistance Schottky diodes
