BZ-2RQ1T

基本/快动开关 15A @ 250 VAC SPDT Plunger Screw

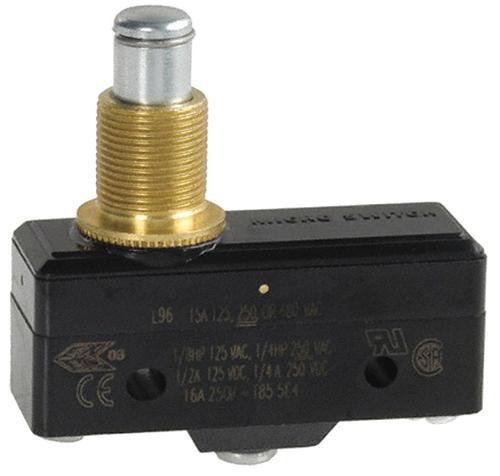

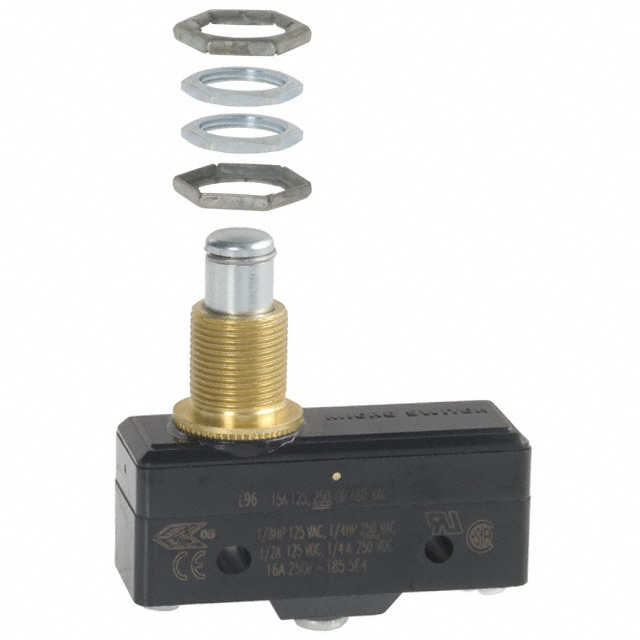

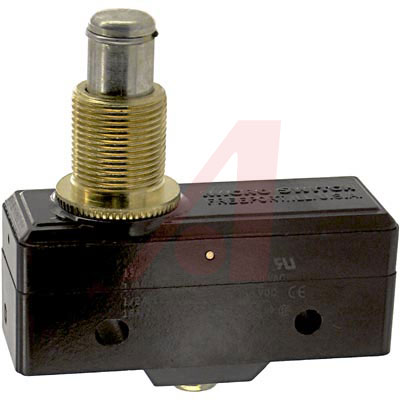

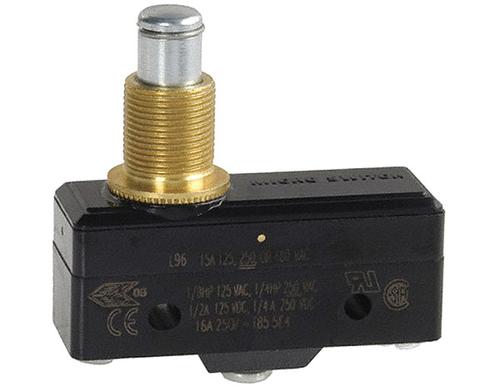

Standard large basic precision snap acting switch with overtravel plunger.

贸泽:
基本/快动开关 15A @ 250 VAC SPDT Plunger Screw

艾睿:
Look no further for a switch to quickly open or close your circuit and use the BZ-2RQ1T snap-action switch from Honeywell. This device has a maximum current rating of 16 A @ 250VAC. It has a SPDT configuration. This snap action switch has an operating temperature range of -55 °C to 85 °C. The BZ-2RQ1T snap action switch has a screw termination style. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250 VDC. This product is 49.28 mm long, 47.35 mm tall and 17.45 mm deep.

Allied Electronics:
Basic Switch, Standard, SPDT, 15 Amps, 9-13 OPERATING FORCE

Chip1Stop:
Electromechanical Switch Basic Switch N.O./N.C. SPDT 16A

Verical:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger 16A 480VAC 250VDC 186.42VA 3.61N Panel Mount Screw Automotive

Newark:
# HONEYWELL  BZ-2RQ1T  Microswitch, BZ Series, SPDT, Screw, 15 A, 250 VAC, 250 VDC

MASTER:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, No Electrical Rating, 11,9 mm [0.470 in] Threaded Bushing with 8,3 mm [0.326 in] Diameter Hardened Steel Additional Overtravel Plunger, Binding Head Combination Screw

Online Components:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, ENEC 16 A ...

Electro Sonic:
MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, No Electrical Rating, 11,9 mm [0.470 in] ...
