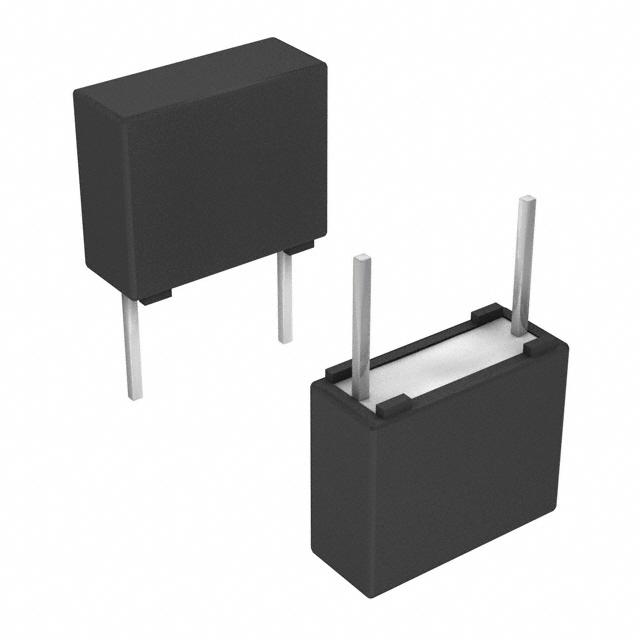

VISHAY BFC237051332 膜电容, MKT370系列, 3300 pF, ± 10%, PET聚酯, 400 V
The Vishay MKT370 capacitors are radial leaded, metalized polyester DC film capacitors with 5.08mm pitch spacing. The capacitance range includes E12 decade values from 0.00068µF to 1.5µF. These film capacitors are automotive qualified non polarized electrical capacitors with insulated polyester film as dielectric.
- .
- Automotive grade AEC-Q200 compliant
- .
- Rated DC voltage of 50V, 63V, 250V, 400V, 630V
- .
- Rated AC voltage of 32V, 40V, 63V, 160V, 220V
- .
- ±5% and ±10% tolerance
- .
- Compliant to IEC 60384-2 standard
- .
- Endurance is 2000h at 85°C
- .
- Flame retardant plastic case and epoxy resin coated with tinned wire
- .
- Maximum operating temperature is 85°C
额定电压DC 400 V
额定电压AC 220 V
绝缘电阻 3.00 GΩ
电容 3300 pF
容差 ±10 %
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 400 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 5.08 mm
长度 7.2 mm
宽度 2.5 mm
高度 6.5 mm
脚长度 4.00 mm
封装 Radial, Box
引脚间距 5.08 mm
介质材料 Polyester
工作温度 -55℃ ~ 105℃
包装方式 Each
制造应用 消费电子产品, Automotive, 通用, 便携式器材, Industrial, Power Management, Portable Devices, 工业, Consumer Electronics, 车用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BFC237051332 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
2222 370 51332 威世 | 完全替代 | BFC237051332和2222 370 51332的区别 |
BFC237052332 威世 | 类似代替 | BFC237051332和BFC237052332的区别 |
BFC247066332 威世 | 类似代替 | BFC237051332和BFC247066332的区别 |
