BZ-2RN784

HONEYWELL  BZ-2RN784  微动开关

Switching Unit

* For use with compact enclosed switches

** Features**

* Specifically Designed for Enclosed Basic Switches

* Replacement Seal Boots and Levers

贸泽:
Basic / Snap Action Switches Ovrtvl Plngr Actutor Slvr Contcts - screw

e络盟:
微动开关

艾睿:

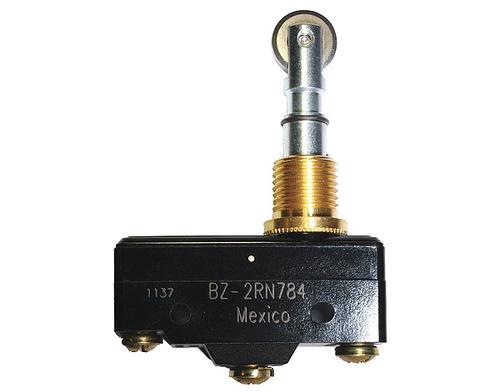

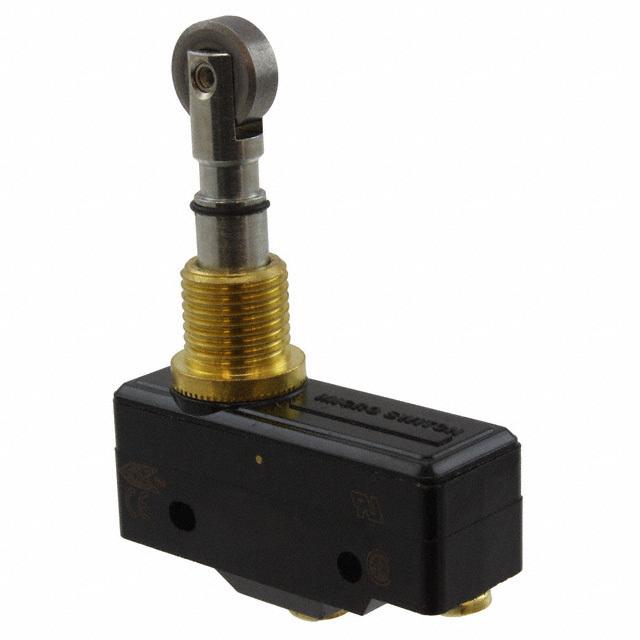

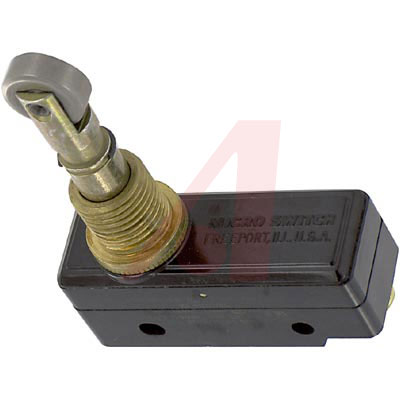

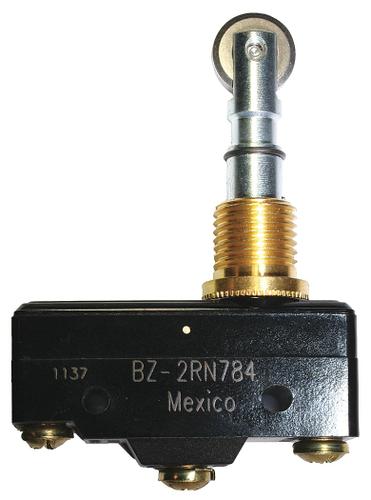

This BZ-2RN784 snap-action switch from Honeywell can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 16 A @ 250VAC. This snap action switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The BZ-2RN784 snap action switch has a screw termination style. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 250 VDC. This product is 49.28 mm long, 66.22 mm tall and 17.45 mm deep.

Allied Electronics:
Basic Switch, SPDT, 15 Amps @ 250 Vac, Overtravel Plunger Actuator, Screw Term

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger Screw 16A 600VAC 250VDC 186.42VA 3.61N Panel Mount

Verical:
Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger 16A 600VAC 250VDC 186.42VA 3.61N Panel Mount Screw Automotive

Newark:
# HONEYWELL  BZ-2RN784  Microswitch, BZ Series, SPDT, Screw, 15 A, 250 VAC, 250 VDC

MASTER:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Overtravel Plunger Actuator, 2,5 N - 3.61 N [9 - 13 oz] Operating Force, Silver Contacts, Screw Termination

Electro Sonic:
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A at 250 Vac, Overtravel Plunger Actuator, 2,5 ...
