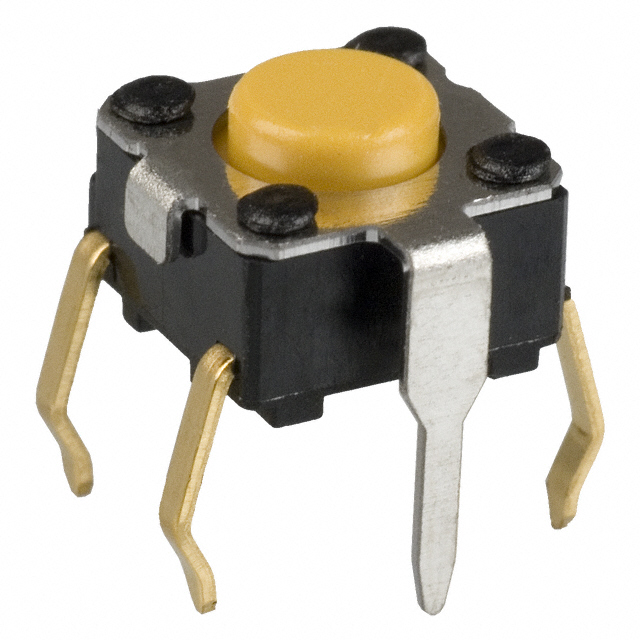

Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
得捷:
SWITCH TACTILE SPST-NO 0.05A 24V
贸泽:
Tactile Switches Mechanical Keyswitch
艾睿:
Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
Chip1Stop:
Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
Newark:
# OMRON ELECTRONIC COMPONENTS B3F-1102-G Mechanical Key Switch
MASTER:
Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
Online Components:
Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
Electro Sonic:
Switch Tactile N.O. SPST Round Plunger PC Pins 0.05A 24VDC 1.76N Thru-Hole Bag
额定电压DC 24 V
接触器类型 Standard
额定电流 50 mA
排数 2
方向 Vertical
触点类型 SPST-NO
触点额定电流 50.0 mA
额定电流Max 0.05A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Through Hole
长度 6 mm
宽度 6 mm
高度 4.3 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
