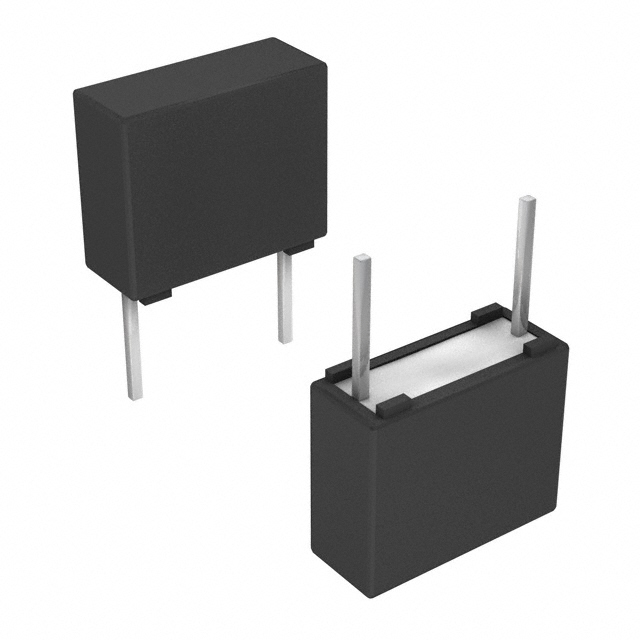

VISHAY BFC237011474. 膜电容, MKT370系列, 0.47 µF, ± 10%, PET聚酯, 63 V
The Vishay MKT370 capacitors are radial leaded, metalized polyester DC film capacitors with 5.08mm pitch spacing. The capacitance range includes E12 decade values from 0.00068µF to 1.5µF. These film capacitors are automotive qualified non polarized electrical capacitors with insulated polyester film as dielectric.
- .
- Automotive grade AEC-Q200 compliant
- .
- Rated DC voltage of 50V, 63V, 250V, 400V, 630V
- .
- Rated AC voltage of 32V, 40V, 63V, 160V, 220V
- .
- ±5% and ±10% tolerance
- .
- Compliant to IEC 60384-2 standard
- .
- Endurance is 2000h at 85°C
- .
- Flame retardant plastic case and epoxy resin coated with tinned wire
- .
- Maximum operating temperature is 85°C
额定电压DC 63 V
额定电压AC 40 V
绝缘电阻 2.35 GΩ
电容 0.47 µF
容差 ±10 %
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 63 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 5.08 mm
长度 7.2 mm
宽度 3.5 mm
高度 8 mm
脚长度 4.00 mm
封装 Radial, Box
引脚间距 5.08 mm
介质材料 Polyester
工作温度 -55℃ ~ 100℃
包装方式 Each
制造应用 Industrial, 便携式器材, Automotive, 通用, 工业, 消费电子产品, 车用, Consumer Electronics, Portable Devices, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BFC237011474 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MMK5474K63J02L4BULK 基美 | 类似代替 | BFC237011474和MMK5474K63J02L4BULK的区别 |
MKS2C034701C00KSSD WIMA | 类似代替 | BFC237011474和MKS2C034701C00KSSD的区别 |
BFC237012474 威世 | 类似代替 | BFC237011474和BFC237012474的区别 |
