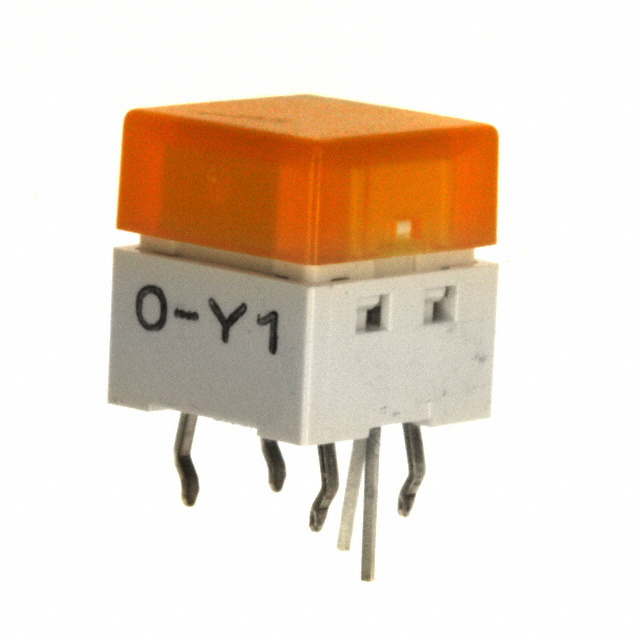

OMRON ELECTRONIC COMPONENTS B3W-9000-Y1Y 轻触开关, 不发光, 1.57 N, 24 V, 50 mA, 焊接, B3W-9系列
照明轻触式 B3W-9
紧凑结构(10x10x11mm 高)
通过独特的结构扩散面板可实现颜色明亮和统一
密封开关部件提供高触点防尘可靠性

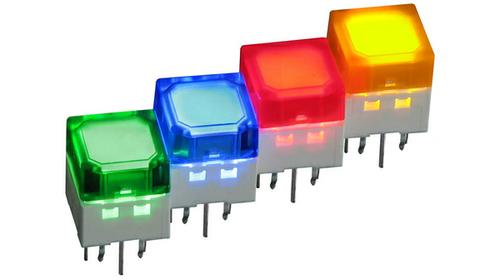

提供单或双蓝色、绿色、红色或黄色 LED,配备各种盖颜色
瞬时型,单刀单掷 - 常开,切换容量 1 至 50mA,5 至 24V 直流
操作力 1.57N
建议的 LED 正向电流用于红色、绿色和黄色 20mA,亮绿色和蓝色 10mA
工作温度范围 -25 到 70°C @ 60 % 最大湿度(无冻结或冷凝)
欧时:
Tactile switch,1 yellow LED/yellow cap
贸泽:
触觉开关 Illuminated Yellow LED and Cap
艾睿:
This B3W-9000-Y1Y tactile switch from Omron is perfect for turning on your circuit by applying pressure. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The B3W-9000-Y1Y tactile switch has a PC pin termination style. This product is 10 mm long, 11 mm tall and 10 mm deep. This yellow square button actuator is 5.2 mm long. The maximum DC voltage rating is 24 VDC.
Allied Electronics:
SWITCH; TACTILE & JOG SWITCHES ILLUMINATED YELLOW LED AND CAP
Chip1Stop:
Switch Tactile N.O. SPST Square Button PC Pins 0.05A 24VDC 1.57N Thru-Hole Box
Newark:
# OMRON ELECTRONIC COMPONENTS B3W-9000-Y1Y Sw Yellow LED Yellow Cap
MASTER:
Switch Tactile N.O. SPST Square Button PC Pins 0.05A 24VDC 1.57N Thru-Hole Box
Electro Sonic:
Switch Tactile N.O. SPST Square Button PC Pins 0.05A 24VDC 1.57N Thru-Hole Box
绝缘电阻 100 MΩ
排数 2
触点类型 SPST-NO
正向电压 2.40 V
接触电阻 100 mΩ
触点额定电流 50mA @24VDC
额定电流Max 0.05A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
接触电阻Max 100 mΩ
安装方式 Through Hole
长度 10 mm
宽度 10 mm
高度 11 mm
颜色 Yellow
触点材质 Silver
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Box
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B3W-9000-Y1Y Omron 欧姆龙 | 当前型号 | 当前型号 |
B3W-9000-Y1N 欧姆龙 | 完全替代 | B3W-9000-Y1Y和B3W-9000-Y1N的区别 |
B3W9000HG1G 欧姆龙 | 完全替代 | B3W-9000-Y1Y和B3W9000HG1G的区别 |
B3W-9000-G1N 欧姆龙 | 功能相似 | B3W-9000-Y1Y和B3W-9000-G1N的区别 |
