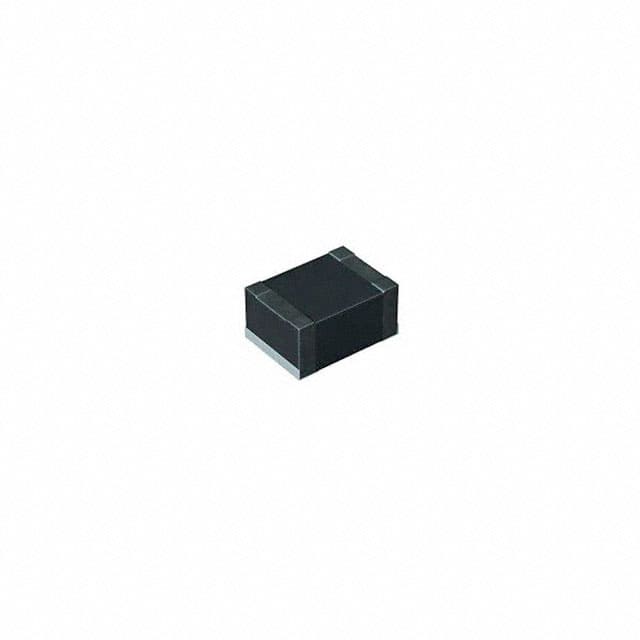

0603 720nH ±20%
Inductor Power Chip Wirewound 720nH 20% 6MHz Ferrite 810mA 187.2mOhm DCR 0603 T/R
得捷:
FIXED IND 720NH 810MA 144MOHM SM
立创商城:
720nH ±20% 1A
贸泽:
Fixed Inductors 0603 .72uH .1872Ohms +/-20%Tol 810mA
艾睿:
Inductor Power Chip Wirewound 0.72uH 20% 6MHz Ferrite 0.81A 0.1872Ohm DCR 0603 T/R
安富利:
Ind Power Chip Wirewound 720nH 20% 6MHz Ferrite 810mA 0603 T/R
Verical:
Inductor Power Chip Wirewound 0.72uH 20% 6MHz Ferrite 0.81A 0.1872Ohm DCR 0603 T/R
MASTER:
Inductor Power Chip Wirewound 0.72uH 20% 6MHz Ferrite 0.81A 0.1872Ohm DCR 0603 T/R
Online Components:
Inductor Power Chip Wirewound 720nH 20% 6MHz Ferrite 810mA 187.2mOhm DCR 0603 T/R
Electro Sonic:
Inductor Power Chip Wirewound 0.72uH 20% 6MHz Ferrite 0.81A 0.1872Ohm DCR 0603 T/R
Win Source:
FIXED IND 720NH 810MA 144MOHM SM / 720 nH Unshielded Drum Core, Wirewound Inductor 810 mA 144mOhm 0603 1608 Metric
额定电流 810 mA
容差 ±20 %
无卤素状态 Halogen Free
电感 720 nH
自谐频率 600 MHz
产品系列 BR
电感公差 ±20 %
测试频率 6 MHz
电阻DC) 144 mΩ
工作温度Max 105 ℃
工作温度Min 40 ℃
电阻DC Max 0.1872 Ω
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 1 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504500000
